TPC Mechatronics RNH Series Compact LM Guide (Square Block, Sizes 15-35)
TPC Mechatronics RNH Series Compact LM Guide (Square Block, Sizes 15-35)

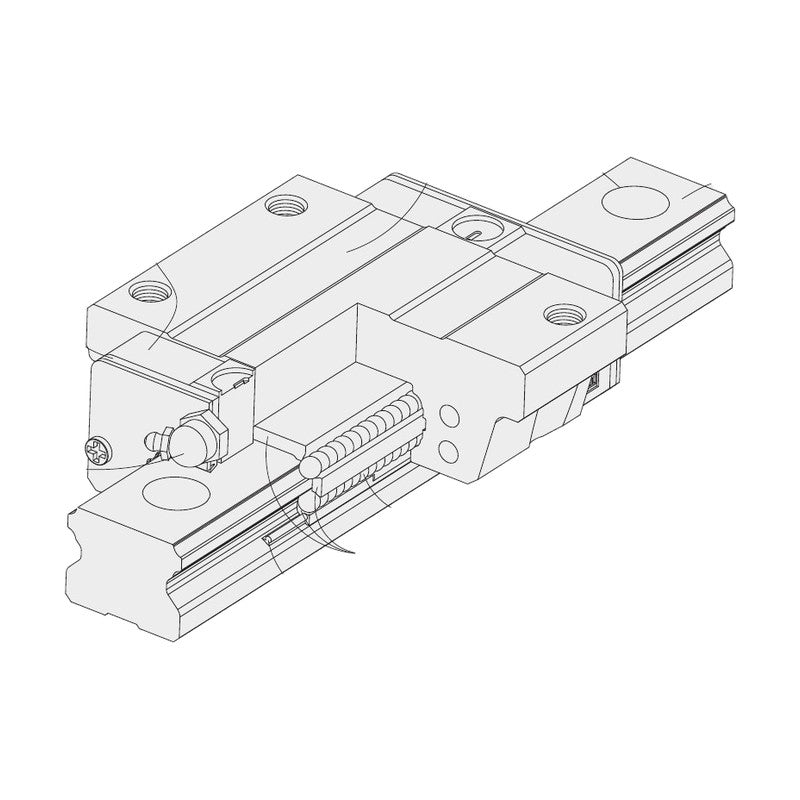

The RNH series is a compact linear guideway with a square (narrow) block that mounts from the top.
Key features
- The RN design offers high load capacity and rigidity with equal load ratings in all four directions, plus self-aligning capability that absorbs mounting errors
- Its low assembly height and short length suit high-speed automation and space-limited machines, and a retainer keeps the balls in the block when it is removed from the rail
- Blocks come in light (SA) and standard (CA) lengths in sizes 15 to 35, in interchangeable or matched types; preload, accuracy grade and rail length are specified at order
| RNH15SA | Load type: Light (S) | Height H: 24 mm | Width W: 34 mm | Length L: 41.1 mm | Rail width WR: 15 mm | Rail mounting bolt: M4x16 | Basic dynamic load rating C: 5.1 kN | Basic static load rating C0: 8.94 kN | Block mass: 0.12 kg | Rail mass: 1.26 kg/m | |
| RNH15CA | Load type: Standard (C) | Height H: 24 mm | Width W: 34 mm | Length L: 57.8 mm | Rail width WR: 15 mm | Rail mounting bolt: M4x16 | Basic dynamic load rating C: 7.21 kN | Basic static load rating C0: 14.25 kN | Block mass: 0.17 kg | Rail mass: 1.26 kg/m | |
| RNH20SA | Load type: Light (S) | Height H: 28 mm | Width W: 42 mm | Length L: 50 mm | Rail width WR: 20 mm | Rail mounting bolt: M5x16 | Basic dynamic load rating C: 6.54 kN | Basic static load rating C0: 10.75 kN | Block mass: 0.16 kg | Rail mass: 2.09 kg/m | |
| RNH20CA | Load type: Standard (C) | Height H: 28 mm | Width W: 42 mm | Length L: 69.1 mm | Rail width WR: 20 mm | Rail mounting bolt: M5x16 | Basic dynamic load rating C: 9.81 kN | Basic static load rating C0: 18.32 kN | Block mass: 0.28 kg | Rail mass: 2.09 kg/m | |
| RNH25SA | Load type: Light (S) | Height H: 33 mm | Width W: 48 mm | Length L: 59.7 mm | Rail width WR: 23 mm | Rail mounting bolt: M6x20 | Basic dynamic load rating C: 10.2 kN | Basic static load rating C0: 17.6 kN | Block mass: 0.26 kg | Rail mass: 2.69 kg/m | |
| RNH25CA | Load type: Standard (C) | Height H: 33 mm | Width W: 48 mm | Length L: 85 mm | Rail width WR: 23 mm | Rail mounting bolt: M6x20 | Basic dynamic load rating C: 15.1 kN | Basic static load rating C0: 30.12 kN | Block mass: 0.42 kg | Rail mass: 2.69 kg/m | |
| RNH30SA | Load type: Light (S) | Height H: 42 mm | Width W: 60 mm | Length L: 71.5 mm | Rail width WR: 28 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 15.32 kN | Basic static load rating C0: 26.28 kN | Block mass: 0.46 kg | Rail mass: 4.26 kg/m | |
| RNH30CA | Load type: Standard (C) | Height H: 42 mm | Width W: 60 mm | Length L: 100 mm | Rail width WR: 28 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 20.12 kN | Basic static load rating C0: 45.33 kN | Block mass: 0.77 kg | Rail mass: 4.26 kg/m | |
| RNH35SA | Load type: Light (S) | Height H: 48 mm | Width W: 70 mm | Length L: 75 mm | Rail width WR: 34 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 20.65 kN | Basic static load rating C0: 35.58 kN | Block mass: 0.75 kg | Rail mass: 6.11 kg/m | |
| RNH35CA | Load type: Standard (C) | Height H: 48 mm | Width W: 70 mm | Length L: 108 mm | Rail width WR: 34 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 30.94 kN | Basic static load rating C0: 61.83 kN | Block mass: 1.12 kg | Rail mass: 6.11 kg/m |
LM GuidesTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics RNH Series Compact LM Guide (Square Block, Sizes 15-35)
Available part numbers (10)
RNH15SA, RNH15CA, RNH20SA, RNH20CA, RNH25SA, RNH25CA, RNH30SA, RNH30CA, RNH35SA, RNH35CA
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
LM Guides
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| RNH15SA | Load type: Light (S) | Height H: 24 mm | Width W: 34 mm | Length L: 41.1 mm | Rail width WR: 15 mm | Rail mounting bolt: M4x16 | Basic dynamic load rating C: 5.1 kN | Basic static load rating C0: 8.94 kN | Block mass: 0.12 kg | Rail mass: 1.26 kg/m | ||
| RNH15CA | Load type: Standard (C) | Height H: 24 mm | Width W: 34 mm | Length L: 57.8 mm | Rail width WR: 15 mm | Rail mounting bolt: M4x16 | Basic dynamic load rating C: 7.21 kN | Basic static load rating C0: 14.25 kN | Block mass: 0.17 kg | Rail mass: 1.26 kg/m | ||
| RNH20SA | Load type: Light (S) | Height H: 28 mm | Width W: 42 mm | Length L: 50 mm | Rail width WR: 20 mm | Rail mounting bolt: M5x16 | Basic dynamic load rating C: 6.54 kN | Basic static load rating C0: 10.75 kN | Block mass: 0.16 kg | Rail mass: 2.09 kg/m | ||
| RNH20CA | Load type: Standard (C) | Height H: 28 mm | Width W: 42 mm | Length L: 69.1 mm | Rail width WR: 20 mm | Rail mounting bolt: M5x16 | Basic dynamic load rating C: 9.81 kN | Basic static load rating C0: 18.32 kN | Block mass: 0.28 kg | Rail mass: 2.09 kg/m | ||
| RNH25SA | Load type: Light (S) | Height H: 33 mm | Width W: 48 mm | Length L: 59.7 mm | Rail width WR: 23 mm | Rail mounting bolt: M6x20 | Basic dynamic load rating C: 10.2 kN | Basic static load rating C0: 17.6 kN | Block mass: 0.26 kg | Rail mass: 2.69 kg/m | ||
| RNH25CA | Load type: Standard (C) | Height H: 33 mm | Width W: 48 mm | Length L: 85 mm | Rail width WR: 23 mm | Rail mounting bolt: M6x20 | Basic dynamic load rating C: 15.1 kN | Basic static load rating C0: 30.12 kN | Block mass: 0.42 kg | Rail mass: 2.69 kg/m | ||
| RNH30SA | Load type: Light (S) | Height H: 42 mm | Width W: 60 mm | Length L: 71.5 mm | Rail width WR: 28 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 15.32 kN | Basic static load rating C0: 26.28 kN | Block mass: 0.46 kg | Rail mass: 4.26 kg/m | ||
| RNH30CA | Load type: Standard (C) | Height H: 42 mm | Width W: 60 mm | Length L: 100 mm | Rail width WR: 28 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 20.12 kN | Basic static load rating C0: 45.33 kN | Block mass: 0.77 kg | Rail mass: 4.26 kg/m | ||
| RNH35SA | Load type: Light (S) | Height H: 48 mm | Width W: 70 mm | Length L: 75 mm | Rail width WR: 34 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 20.65 kN | Basic static load rating C0: 35.58 kN | Block mass: 0.75 kg | Rail mass: 6.11 kg/m | ||
| RNH35CA | Load type: Standard (C) | Height H: 48 mm | Width W: 70 mm | Length L: 108 mm | Rail width WR: 34 mm | Rail mounting bolt: M8x25 | Basic dynamic load rating C: 30.94 kN | Basic static load rating C0: 61.83 kN | Block mass: 1.12 kg | Rail mass: 6.11 kg/m |
Need a different model, or a part not listed here? Send us your parts list →
