TPC Mechatronics RSFB / RDFB Series Ball Screw Nut (B-Type, Single and Double)

The RSFB / RDFB Series is a precision ball screw nut line from TPC Mechatronics: B-type flanged nut offered as single nut (RSFB) and double nut (RDFB), shaft diameters 32-50 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
Internal ball circulation keeps the nut outer diameter small
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments

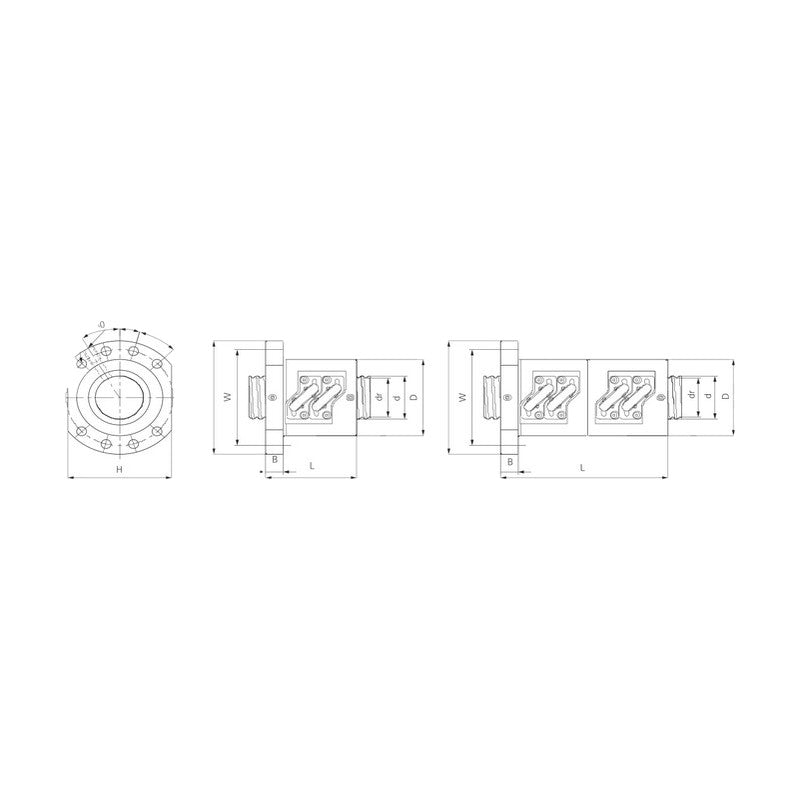

The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

Specifications

Circuits	2.7×2
Thread direction	Right

RSFBR3205-5.4		Shaft dia. d: 32 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2579 kgf \| Static load Coa: 8885 kgf \| Rigidity K: 751 kgf/μm \| Nut dia. D: 57 mm \| Flange dia. A: 84 mm \| Nut length L: 63 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBR4005-5.4		Shaft dia. d: 40 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2829 kgf \| Static load Coa: 11191 kgf \| Rigidity K: 875 kgf/μm \| Nut dia. D: 65 mm \| Flange dia. A: 95 mm \| Nut length L: 63 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBR4006-5.4		Shaft dia. d: 40 mm \| Lead: 6 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 3857 kgf \| Static load Coa: 13885 kgf \| Rigidity K: 915 kgf/μm \| Nut dia. D: 65 mm \| Flange dia. A: 95 mm \| Nut length L: 73 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBR5008-5.4		Shaft dia. d: 50 mm \| Lead: 8 mm \| Ball dia.: 4.762 mm \| Dynamic load Ca: 5403 kgf \| Static load Coa: 20641 kgf \| Rigidity K: 1697 kgf/μm \| Nut dia. D: 83 mm \| Flange dia. A: 121 mm \| Nut length L: 92 mm \| Circuits: 2.7×2 \| Thread direction: Right
RDFBR3205-5.4		Shaft dia. d: 32 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2579 kgf \| Static load Coa: 8885 kgf \| Rigidity K: 1164 kgf/μm \| Nut dia. D: 57 mm \| Flange dia. A: 84 mm \| Nut length L: 111 mm \| Circuits: 2.7×2 \| Thread direction: Right
RDFBR4005-5.4		Shaft dia. d: 40 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2829 kgf \| Static load Coa: 11191 kgf \| Rigidity K: 1356 kgf/μm \| Nut dia. D: 65 mm \| Flange dia. A: 95 mm \| Nut length L: 111 mm \| Circuits: 2.7×2 \| Thread direction: Right
RDFBR4006-5.4		Shaft dia. d: 40 mm \| Lead: 6 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 3857 kgf \| Static load Coa: 13885 kgf \| Rigidity K: 1418 kgf/μm \| Nut dia. D: 65 mm \| Flange dia. A: 95 mm \| Nut length L: 134.5 mm \| Circuits: 2.7×2 \| Thread direction: Right
RDFBR5008-5.4		Shaft dia. d: 50 mm \| Lead: 8 mm \| Ball dia.: 4.762 mm \| Dynamic load Ca: 5403 kgf \| Static load Coa: 20641 kgf \| Rigidity K: 1697 kgf/μm \| Nut dia. D: 83 mm \| Flange dia. A: 121 mm \| Nut length L: 161 mm \| Circuits: 2.7×2 \| Thread direction: Right
