TPC Mechatronics RSFU Series Heavy-Load Ball Screw Nut (U-Type, Single Flanged)

The RSFU Series is a precision ball screw nut line from TPC Mechatronics: U-type single flanged nut for large-diameter, heavy-load ball screws from 50 to 100 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
Large balls and multiple circuits give very high dynamic and static load ratings
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments

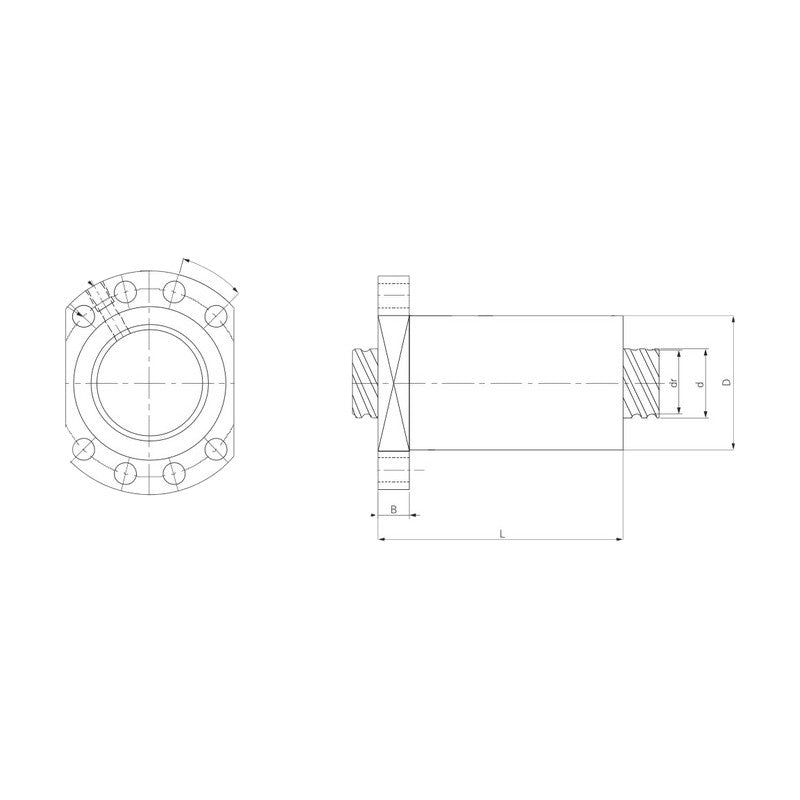

The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

Specifications

Thread direction	Right

RSFUR5012-T6		Shaft dia. d: 50 mm \| Lead: 12 mm \| Ball dia.: 7.144 mm \| Dynamic load Ca: 9925 kgf \| Static load Coa: 32566 kgf \| Rigidity K: 128 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 118 mm \| Nut length L: 136 mm \| Circuits: 6×1 \| Thread direction: Right
RSFUR6320-T6		Shaft dia. d: 63 mm \| Lead: 20 mm \| Ball dia.: 9.525 mm \| Dynamic load Ca: 16736 kgf \| Static load Coa: 57670 kgf \| Rigidity K: 170 kgf/μm \| Nut dia. D: 95 mm \| Flange dia. A: 135 mm \| Nut length L: 202 mm \| Circuits: 6×1 \| Thread direction: Right
RSFUR8020-T8		Shaft dia. d: 80 mm \| Lead: 20 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 34233 kgf \| Static load Coa: 124028 kgf \| Rigidity K: 267 kgf/μm \| Nut dia. D: 118 mm \| Flange dia. A: 178 mm \| Nut length L: 254 mm \| Circuits: 8×1 \| Thread direction: Right
RSFUR8025-T4		Shaft dia. d: 80 mm \| Lead: 25 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 25079 kgf \| Static load Coa: 76260 kgf \| Rigidity K: 148 kgf/μm \| Nut dia. D: 128 mm \| Flange dia. A: 178 mm \| Nut length L: 198 mm \| Circuits: 4×1 \| Thread direction: Right
RSFUR10020-T6		Shaft dia. d: 100 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 40014 kgf \| Static load Coa: 145476 kgf \| Rigidity K: 246 kgf/μm \| Nut dia. D: 150 mm \| Flange dia. A: 195 mm \| Nut length L: 213 mm \| Circuits: 6×1 \| Thread direction: Right

Ball ScrewsTPC Mechatronics

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics RSFU Series Heavy-Load Ball Screw Nut (U-Type, Single Flanged)

Brand TPC Mechatronics·Ball Screws

Available part numbers (5)

RSFUR5012-T6, RSFUR6320-T6, RSFUR8020-T8, RSFUR8025-T4, RSFUR10020-T6

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RSFUR5012-T6	Shaft dia. d: 50 mm \| Lead: 12 mm \| Ball dia.: 7.144 mm \| Dynamic load Ca: 9925 kgf \| Static load Coa: 32566 kgf \| Rigidity K: 128 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 118 mm \| Nut length L: 136 mm \| Circuits: 6×1 \| Thread direction: Right
	RSFUR6320-T6	Shaft dia. d: 63 mm \| Lead: 20 mm \| Ball dia.: 9.525 mm \| Dynamic load Ca: 16736 kgf \| Static load Coa: 57670 kgf \| Rigidity K: 170 kgf/μm \| Nut dia. D: 95 mm \| Flange dia. A: 135 mm \| Nut length L: 202 mm \| Circuits: 6×1 \| Thread direction: Right
	RSFUR8020-T8	Shaft dia. d: 80 mm \| Lead: 20 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 34233 kgf \| Static load Coa: 124028 kgf \| Rigidity K: 267 kgf/μm \| Nut dia. D: 118 mm \| Flange dia. A: 178 mm \| Nut length L: 254 mm \| Circuits: 8×1 \| Thread direction: Right
	RSFUR8025-T4	Shaft dia. d: 80 mm \| Lead: 25 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 25079 kgf \| Static load Coa: 76260 kgf \| Rigidity K: 148 kgf/μm \| Nut dia. D: 128 mm \| Flange dia. A: 178 mm \| Nut length L: 198 mm \| Circuits: 4×1 \| Thread direction: Right
	RSFUR10020-T6	Shaft dia. d: 100 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 40014 kgf \| Static load Coa: 145476 kgf \| Rigidity K: 246 kgf/μm \| Nut dia. D: 150 mm \| Flange dia. A: 195 mm \| Nut length L: 213 mm \| Circuits: 6×1 \| Thread direction: Right

Need a different model, or a part not listed here? Send us your parts list →
