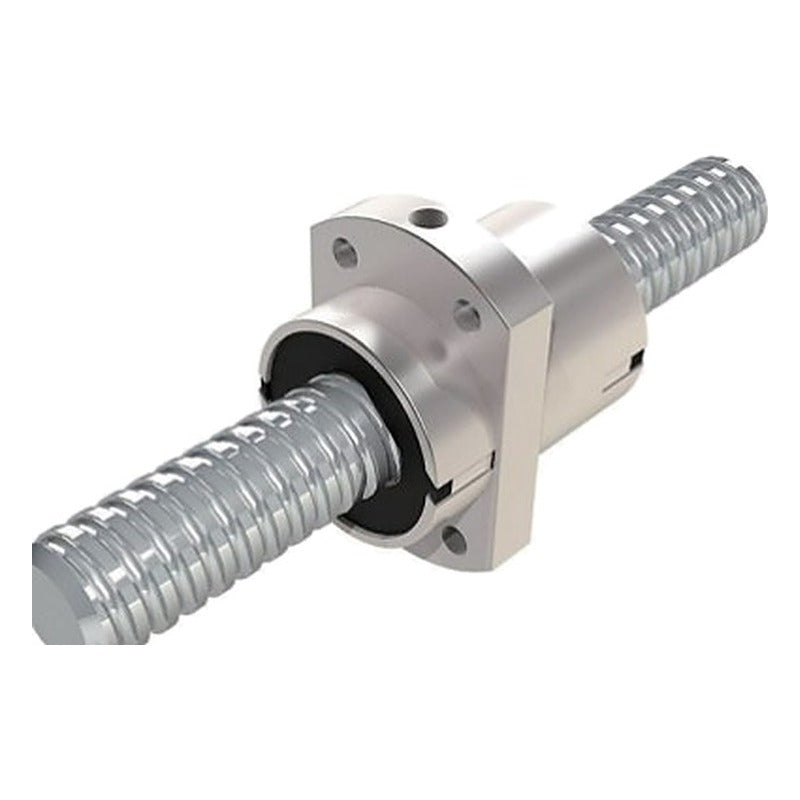

TPC Mechatronics RSFY Series High-Lead Ball Screw Nut (Y-Type, Single Flanged)

The RSFY Series is a precision ball screw nut line from TPC Mechatronics: Y-type end-cap circulation single flanged nut for high-lead ball screws, lead 16-100 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
End-cap ball circulation allows compact nuts and smooth high-speed travel
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments
The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

Specifications

Thread direction	Right

TPC Mechatronics RSFY Series High-Lead Ball Screw Nut (Y-Type, Single Flanged) reference 2

RSFYR1616-3.6		Shaft dia. d: 16 mm \| Lead: 16 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 1088 kgf \| Static load Coa: 2554 kgf \| Rigidity K: 31 kgf/μm \| Nut dia. D: 32 mm \| Flange dia. A: 53 mm \| Nut length L: 45 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR1632-1.6		Shaft dia. d: 16 mm \| Lead: 32 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 492 kgf \| Static load Coa: 1111 kgf \| Rigidity K: 12 kgf/μm \| Nut dia. D: 32 mm \| Flange dia. A: 53 mm \| Nut length L: 42.5 mm \| Circuits: 0.8×2 \| Thread direction: Right
RSFYR2020-3.6		Shaft dia. d: 20 mm \| Lead: 20 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1390 kgf \| Static load Coa: 3511 kgf \| Rigidity K: 35 kgf/μm \| Nut dia. D: 39 mm \| Flange dia. A: 62 mm \| Nut length L: 52 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR2040-1.6		Shaft dia. d: 20 mm \| Lead: 40 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 652 kgf \| Static load Coa: 1590 kgf \| Rigidity K: 15 kgf/μm \| Nut dia. D: 39 mm \| Flange dia. A: 62 mm \| Nut length L: 50 mm \| Circuits: 0.8×2 \| Thread direction: Right
RSFYR2040-3.6		Shaft dia. d: 20 mm \| Lead: 40 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1309 kgf \| Static load Coa: 3578 kgf \| Rigidity K: 32 kgf/μm \| Nut dia. D: 39 mm \| Flange dia. A: 62 mm \| Nut length L: 90 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR2525-3.6		Shaft dia. d: 25 mm \| Lead: 25 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2078 kgf \| Static load Coa: 5489 kgf \| Rigidity K: 44 kgf/μm \| Nut dia. D: 47 mm \| Flange dia. A: 74 mm \| Nut length L: 64 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR2525-5.6		Shaft dia. d: 25 mm \| Lead: 25 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 3038 kgf \| Static load Coa: 8538 kgf \| Rigidity K: 66 kgf/μm \| Nut dia. D: 47 mm \| Flange dia. A: 74 mm \| Nut length L: 89 mm \| Circuits: 2.8×2 \| Thread direction: Right
RSFYR2550-1.6		Shaft dia. d: 25 mm \| Lead: 50 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 975 kgf \| Static load Coa: 2487 kgf \| Rigidity K: 18 kgf/μm \| Nut dia. D: 47 mm \| Flange dia. A: 74 mm \| Nut length L: 60 mm \| Circuits: 0.8×2 \| Thread direction: Right
RSFYR2550-3.6		Shaft dia. d: 25 mm \| Lead: 50 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 1957 kgf \| Static load Coa: 5595 kgf \| Rigidity K: 39 kgf/μm \| Nut dia. D: 47 mm \| Flange dia. A: 74 mm \| Nut length L: 110 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR3232-3.6		Shaft dia. d: 32 mm \| Lead: 32 mm \| Ball dia.: 4.762 mm \| Dynamic load Ca: 2939 kgf \| Static load Coa: 8307 kgf \| Rigidity K: 53 kgf/μm \| Nut dia. D: 58 mm \| Flange dia. A: 92 mm \| Nut length L: 78 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR3232-5.6		Shaft dia. d: 32 mm \| Lead: 32 mm \| Ball dia.: 4.762 mm \| Dynamic load Ca: 4297 kgf \| Static load Coa: 12922 kgf \| Rigidity K: 81 kgf/μm \| Nut dia. D: 58 mm \| Flange dia. A: 92 mm \| Nut length L: 110 mm \| Circuits: 2.8×2 \| Thread direction: Right
RSFYR3264-1.6		Shaft dia. d: 32 mm \| Lead: 64 mm \| Ball dia.: 4.762 mm \| Dynamic load Ca: 1373 kgf \| Static load Coa: 3742 kgf \| Rigidity K: 22 kgf/μm \| Nut dia. D: 58 mm \| Flange dia. A: 92 mm \| Nut length L: 71 mm \| Circuits: 0.8×2 \| Thread direction: Right
RSFYR4040-3.6		Shaft dia. d: 40 mm \| Lead: 40 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4840 kgf \| Static load Coa: 14057 kgf \| Rigidity K: 67 kgf/μm \| Nut dia. D: 73 mm \| Flange dia. A: 114 mm \| Nut length L: 99 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR4040-5.6		Shaft dia. d: 40 mm \| Lead: 40 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 7077 kgf \| Static load Coa: 21866 kgf \| Rigidity K: 103 kgf/μm \| Nut dia. D: 73 mm \| Flange dia. A: 114 mm \| Nut length L: 139 mm \| Circuits: 2.8×2 \| Thread direction: Right
RSFYR4080-1.6		Shaft dia. d: 40 mm \| Lead: 80 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 2272 kgf \| Static load Coa: 6373 kgf \| Rigidity K: 28 kgf/μm \| Nut dia. D: 73 mm \| Flange dia. A: 114 mm \| Nut length L: 91 mm \| Circuits: 0.8×2 \| Thread direction: Right
RSFYR5050-3.6		Shaft dia. d: 50 mm \| Lead: 50 mm \| Ball dia.: 7.938 mm \| Dynamic load Ca: 7232 kgf \| Static load Coa: 21970 kgf \| Rigidity K: 83 kgf/μm \| Nut dia. D: 90 mm \| Flange dia. A: 135 mm \| Nut length L: 117 mm \| Circuits: 1.8×2 \| Thread direction: Right
RSFYR5050-5.6		Shaft dia. d: 50 mm \| Lead: 50 mm \| Ball dia.: 7.938 mm \| Dynamic load Ca: 10576 kgf \| Static load Coa: 34175 kgf \| Rigidity K: 127 kgf/μm \| Nut dia. D: 90 mm \| Flange dia. A: 135 mm \| Nut length L: 167 mm \| Circuits: 2.8×2 \| Thread direction: Right
RSFYR50100-1.6		Shaft dia. d: 50 mm \| Lead: 100 mm \| Ball dia.: 7.938 mm \| Dynamic load Ca: 3396 kgf \| Static load Coa: 9962 kgf \| Rigidity K: 34 kgf/μm \| Nut dia. D: 90 mm \| Flange dia. A: 135 mm \| Nut length L: 111 mm \| Circuits: 0.8×2 \| Thread direction: Right
