TPC Mechatronics TDH Series Ball Screw Sliding Table Single-Axis Module

TPC Mechatronics TDH Series Ball Screw Sliding Table Single-Axis Module

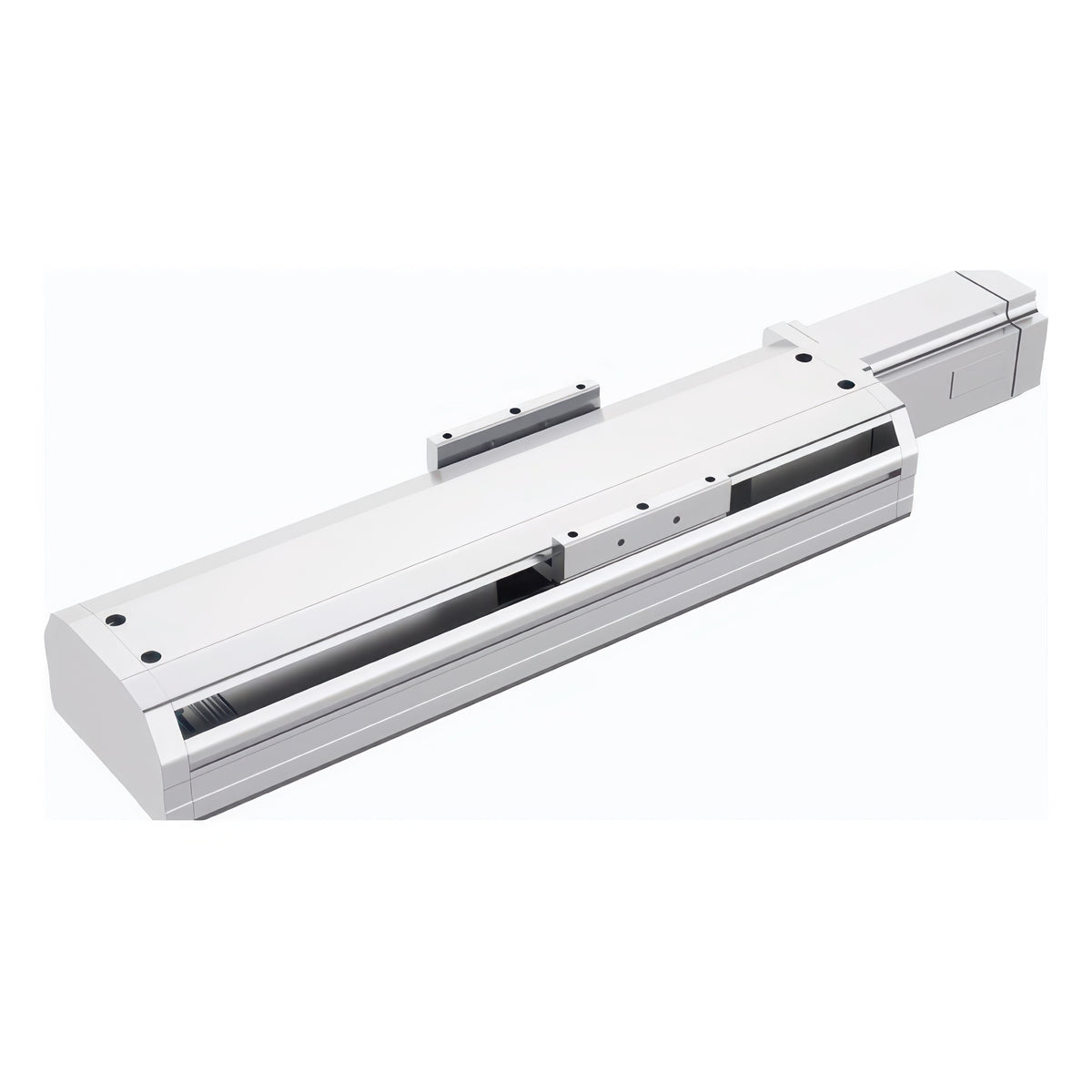

The TDH Series is a ball screw driven single-axis module of the standard sliding table type.

Key features

  • Five body sizes (TDH10, 13, 14, 17 and 22) cover widths from 102 mm to 220 mm, strokes up to 1500 mm in 50 mm increments and repeatability of ±0.01 mm
  • Each size is offered with the motor mounted in-line or folded underneath, to the left or to the right
  • Servo motors from 100 W to 750 W of common brands (Mitsubishi, Panasonic, Yaskawa, Inovance) can be fitted, with optional photo sensors and cable sockets

Specifications

Repeatability ±0.01 mm
TDH-10-BC Body width: 102 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BM Body width: 102 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BR Body width: 102 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BL Body width: 102 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-13-BC Body width: 135 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BM Body width: 135 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BR Body width: 135 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BL Body width: 135 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BC Body width: 135 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BM Body width: 135 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BR Body width: 135 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BL Body width: 135 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-17-BC Body width: 170 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BM Body width: 170 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BR Body width: 170 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BL Body width: 170 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-22-BC Body width: 220 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BM Body width: 220 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BR Body width: 220 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BL Body width: 220 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
Single-Axis ActuatorsTPC Mechatronics
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TDH Series Ball Screw Sliding Table Single-Axis Module

Brand TPC Mechatronics·Single-Axis Actuators

Available part numbers (20)

TDH-10-BC, TDH-10-BM, TDH-10-BR, TDH-10-BL, TDH-13-BC, TDH-13-BM, TDH-13-BR, TDH-13-BL, TDH-14-BC, TDH-14-BM + 10 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TDH-10-BCBody width: 102 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BMBody width: 102 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BRBody width: 102 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-10-BLBody width: 102 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 12 / 8 / 3 kg | Rated thrust: 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 100 W / 200 W / 400 W | Sliding rail: W20 x H17.5
TDH-13-BCBody width: 135 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BMBody width: 135 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BRBody width: 135 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-13-BLBody width: 135 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 70 / 47 / 24 / 13 kg | Max payload vertical: 17 / 12 / 6 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BCBody width: 135 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BMBody width: 135 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BRBody width: 135 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-14-BLBody width: 135 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max speed: 250 / 500 / 1000 / 1600 mm/s | Max payload horizontal: 95 / 75 / 35 / 15 kg | Max payload vertical: 27 / 18 / 7 / - kg | Rated thrust: 683 / 341 / 174 / 107 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 200 W / 400 W | Sliding rail: W15 x H12.5
TDH-17-BCBody width: 170 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BMBody width: 170 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BRBody width: 170 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-17-BLBody width: 170 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 20 mm | Lead: 5 / 10 / 20 / 40 mm | Max speed: 250 / 500 / 1000 / 2000 mm/s | Max payload horizontal: 120 / 110 / 75 / 22 kg | Max payload vertical: 40 / 30 / 14 / 7 kg | Rated thrust: 1388 / 694 / 347 / 174 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W20 x H17.5
TDH-22-BCBody width: 220 mm | Motor mounting: motor in-line (direct coupling) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BMBody width: 220 mm | Motor mounting: motor folded underneath (bottom parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BRBody width: 220 mm | Motor mounting: motor folded right (right parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
TDH-22-BLBody width: 220 mm | Motor mounting: motor folded left (left parallel) | Ball screw diameter: 25 mm | Lead: 5 / 10 / 25 mm | Max speed: 250 / 500 / 1250 mm/s | Max payload horizontal: 180 / 150 / 105 kg | Max payload vertical: 55 / 45 / 20 kg | Rated thrust: 2563 / 1281 / 640 N | Stroke: 50-1500 mm (50 mm increments) | Repeatability: ±0.01 mm | Motor power: 400 W / 750 W | Sliding rail: W25 x H18
