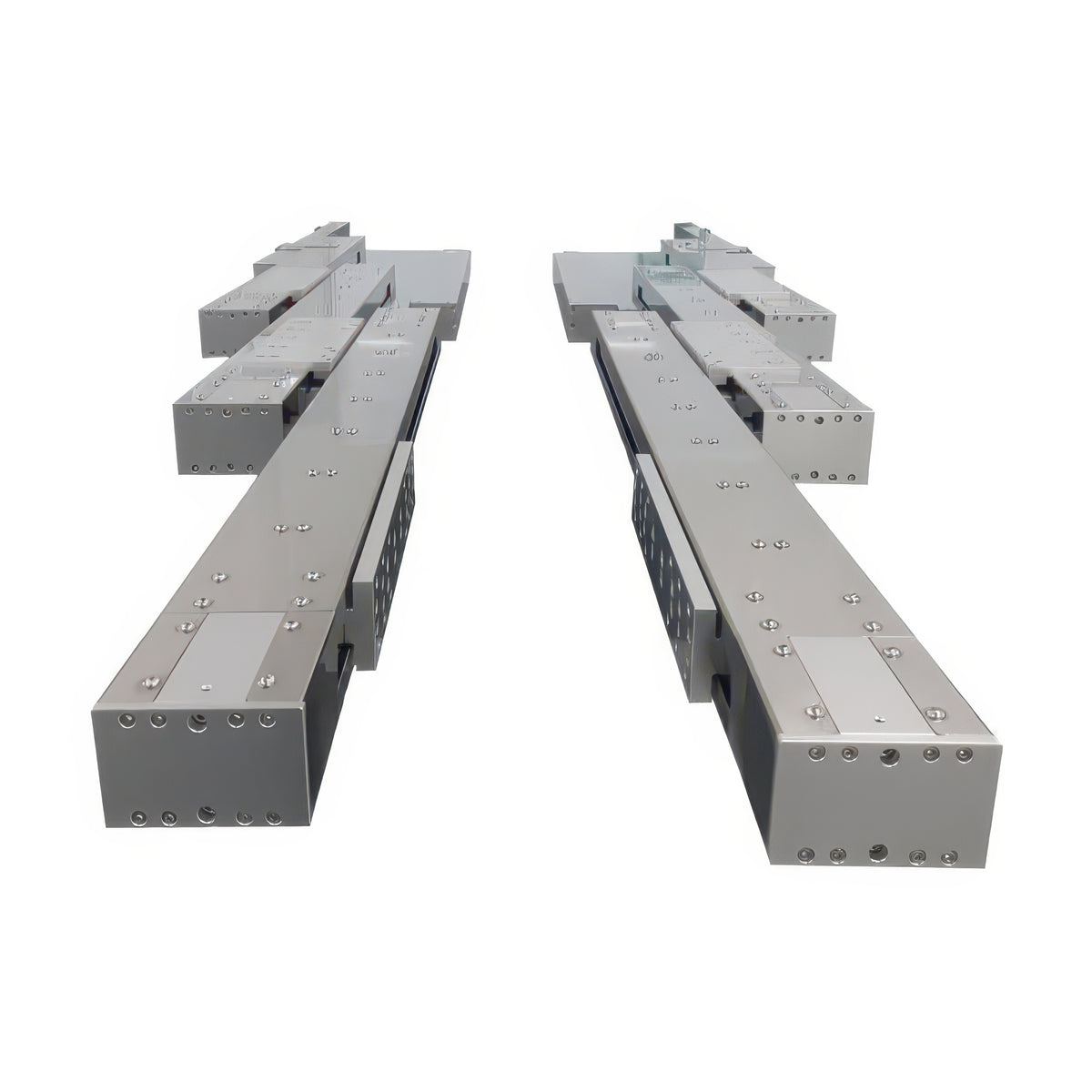

TPC Mechatronics TTS Series Telescopic Stage

TPC Mechatronics TTS Series Telescopic Stage

The TTS Series is a multi-stage telescopic linear stage in which the slider extends together with stacked arms, giving a long travel relative to a short body length.

Key features

  • Two- to four-stage configurations are available, driven by a main ball screw with synchronized urethane timing belts moving the arms
  • Both-arm (BA), single (SG, wall or ceiling mountable) and dual (DL, two synchronized single units for wide workpieces) types are offered
  • One-way units extend in one direction, while two-way units travel forward and backward from a central home position
  • The stage is suited to loading workpieces into chambers, jig racks and other enclosed process areas; repeatability is ±0.1 mm at a recommended speed of 500 mm/s

Specifications

Stages 4-stage telescopic
Ball screw BNK1505A
Arm belt urethane belt
Travel per motor revolution 20 mm
Recommended speed 500 mm/s (motor 1800 rpm)
Acceleration time 0.5 s
Repeatability ±0.1 mm
Slider deflection max 10 mm
TTSBA1W-730-4T-780 Type: Both arm / Two-way (as printed) | Stages: 4-stage telescopic | Stroke: ST 1600 (800+800) mm, limit to limit 1640 mm, stop to stop 1680 mm | Ball screw: BNK1505A | LM guide: No.15 4 rails 8 blocks; No.15 12 rails 24 blocks | Arm belt: urethane belt | Motor: 400 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 30 kg | Mass: 75 kg
TTSBA2W-730-4T-1600 Type: Both arm / Two-way | Stages: 4-stage telescopic | Stroke: ST 1600 (800+800) mm, limit to limit 1640 mm, stop to stop 1680 mm | Ball screw: BNK1505A | LM guide: No.15 4 rails 8 blocks; No.15 12 rails 24 blocks | Arm belt: urethane belt | Motor: 400 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 30 kg | Mass: 75 kg
TTSSG1W-280-4T-480 Type: Single / One-way | Stages: 4-stage telescopic | Stroke: limit to limit 480 mm, stop to stop 520 mm | Ball screw: BNK1505A | LM guide: No.20 1 rail 2 blocks; No.15 6 rails 12 blocks | Arm belt: urethane belt | Motor: 200 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 10 kg | Mass: 20 kg
TTSDL1W-174-4T-480 Type: Dual / One-way | Stages: 4-stage telescopic | Stroke: limit to limit 480 mm, stop to stop 520 mm | Ball screw: BNK1505A | LM guide: No.20 1 rail 2 blocks x 2 sets; No.15 6 rails 12 blocks x 2 sets | Arm belt: urethane belt | Motor: 400 W x 2 | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 25 kg | Mass: 40 kg
Linear StagesTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TTS Series Telescopic Stage

Brand TPC Mechatronics·Linear Stages

Available part numbers (4)

TTSBA1W-730-4T-780, TTSBA2W-730-4T-1600, TTSSG1W-280-4T-480, TTSDL1W-174-4T-480

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TTSBA1W-730-4T-780Type: Both arm / Two-way (as printed) | Stages: 4-stage telescopic | Stroke: ST 1600 (800+800) mm, limit to limit 1640 mm, stop to stop 1680 mm | Ball screw: BNK1505A | LM guide: No.15 4 rails 8 blocks; No.15 12 rails 24 blocks | Arm belt: urethane belt | Motor: 400 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 30 kg | Mass: 75 kg
TTSBA2W-730-4T-1600Type: Both arm / Two-way | Stages: 4-stage telescopic | Stroke: ST 1600 (800+800) mm, limit to limit 1640 mm, stop to stop 1680 mm | Ball screw: BNK1505A | LM guide: No.15 4 rails 8 blocks; No.15 12 rails 24 blocks | Arm belt: urethane belt | Motor: 400 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 30 kg | Mass: 75 kg
TTSSG1W-280-4T-480Type: Single / One-way | Stages: 4-stage telescopic | Stroke: limit to limit 480 mm, stop to stop 520 mm | Ball screw: BNK1505A | LM guide: No.20 1 rail 2 blocks; No.15 6 rails 12 blocks | Arm belt: urethane belt | Motor: 200 W | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 10 kg | Mass: 20 kg
TTSDL1W-174-4T-480Type: Dual / One-way | Stages: 4-stage telescopic | Stroke: limit to limit 480 mm, stop to stop 520 mm | Ball screw: BNK1505A | LM guide: No.20 1 rail 2 blocks x 2 sets; No.15 6 rails 12 blocks x 2 sets | Arm belt: urethane belt | Motor: 400 W x 2 | Travel per motor revolution: 20 mm | Recommended speed: 500 mm/s (motor 1800 rpm) | Acceleration time: 0.5 s | Repeatability: ±0.1 mm | Slider deflection: max 10 mm | Payload: 25 kg | Mass: 40 kg

Need a different model, or a part not listed here? Send us your parts list →
