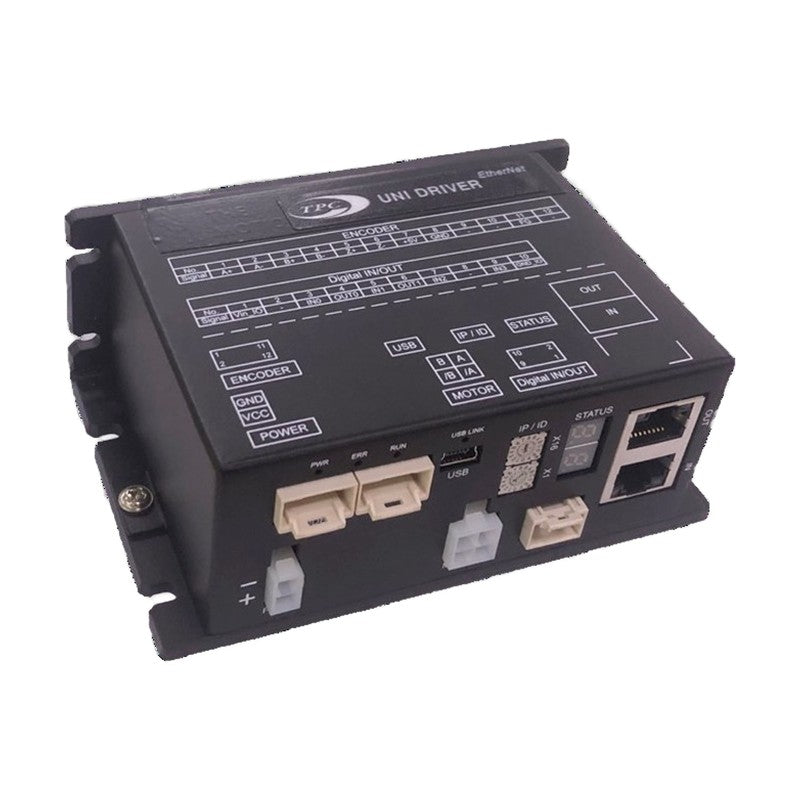

TPC Mechatronics UNI DRIVER Series EtherNet Step Motor Driver and Controller

TPC Mechatronics UNI DRIVER Series EtherNet Step Motor Driver and Controller

The UNI DRIVER series is an integrated step motor driver and motion controller with EtherNet communication for 2-phase bipolar step motors from 28 to 86 mm square.

Key features

  • It supports both open-loop (UST) and closed-loop (USV) control, in 1-axis and 2-axis versions, with an optional boost converter
  • The driver runs its own real-time motion algorithm with point-to-point, circular interpolation and semi-helical functions
  • It can be operated from a PC through the supplied Windows DLL API or from a PLC or touch panel over EtherNet UDP, and up to 506 axes can be daisy-chained
  • A motor database simplifies tuning, and motors from various makers can be driven

Specifications

Function EtherNet step driver and controller in one unit
Motor Step motor
Connection Daisy chain, max. 506 axes (max. 253 drivers)
Operation Windows 7, 8, 10 motion library (DLL) or PLC system memory flag
Max. speed 3000 rpm
USB USB 2.0 (motor parameter setting and monitoring)
EtherNet UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface)
Input voltage/current 24 VDC, 5 mA
Output voltage/current 24 VDC, 500 mA
Encoder resolution x4
Operating temperature -25 to 50 C
Humidity 0 to 75% RH
UST-ENET-2X Control: Open loop | Axes: 2 | Input power: 24 V +/-10% | Max. current: 4 A / 4 A | Boost converter: No | Inputs: 8 | Outputs: 4 | Motor size: 28 to 60 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USV-ENET-2X Control: Closed loop | Axes: 2 | Input power: 24 V +/-10% | Max. current: 4 A / 4 A | Boost converter: No | Inputs: 8 | Outputs: 4 | Motor size: 28 to 60 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USTB-ENET-1X Control: Open loop | Axes: 1 | Input power: 24 V +/-10% | Max. current: 4 A | Boost converter: Yes | Inputs: 4 | Outputs: 2 | Motor size: 28 to 60 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USVB-ENET-1X Control: Closed loop | Axes: 1 | Input power: 24 V +/-10% | Max. current: 4 A | Boost converter: Yes | Inputs: 4 | Outputs: 2 | Motor size: 28 to 60 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USTB-ENET-2X Control: Open loop | Axes: 2 | Input power: 24 V +/-10% | Max. current: 4 A / 4 A | Boost converter: Yes | Inputs: 8 | Outputs: 4 | Motor size: 28 to 60 mm square | Size: 138 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USVB-ENET-2X Control: Closed loop | Axes: 2 | Input power: 24 V +/-10% | Max. current: 4 A / 4 A | Boost converter: Yes | Inputs: 8 | Outputs: 4 | Motor size: 28 to 60 mm square | Size: 138 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USTB-ENET-1X-86 Control: Open loop | Axes: 1 | Input power: 48 V +/-10% | Max. current: 6 A | Boost converter: Yes | Inputs: 4 | Outputs: 2 | Motor size: 86 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
USVB-ENET-1X-86 Control: Closed loop | Axes: 1 | Input power: 48 V +/-10% | Max. current: 6 A | Boost converter: Yes | Inputs: 4 | Outputs: 2 | Motor size: 86 mm square | Size: 118 x 76.5 x 46.2 mm | Function: EtherNet step driver and controller in one unit | Motor: Step motor | Connection: Daisy chain, max. 506 axes (max. 253 drivers) | Operation: Windows 7, 8, 10 motion library (DLL) or PLC system memory flag | Max. speed: 3000 rpm | USB: USB 2.0 (motor parameter setting and monitoring) | EtherNet: UDP communication, PLC operation possible (Mitsubishi, Omron, LS EtherNet interface) | Input voltage/current: 24 VDC, 5 mA | Output voltage/current: 24 VDC, 500 mA | Encoder resolution: x4 | Operating temperature: -25 to 50 C | Humidity: 0 to 75% RH
