WISE Differential-Pressure Flow Elements

WISE Differential-Pressure Flow Elements

Orifice, venturi and averaging Pitot flow elements for differential-pressure flow measurement.

Specifications

Industries (catalogs) Battery and Clean Energy, General Process, Shipbuilding and Offshore
WISE Differential-Pressure Flow ElementsWISE Differential-Pressure Flow ElementsWISE Differential-Pressure Flow Elements

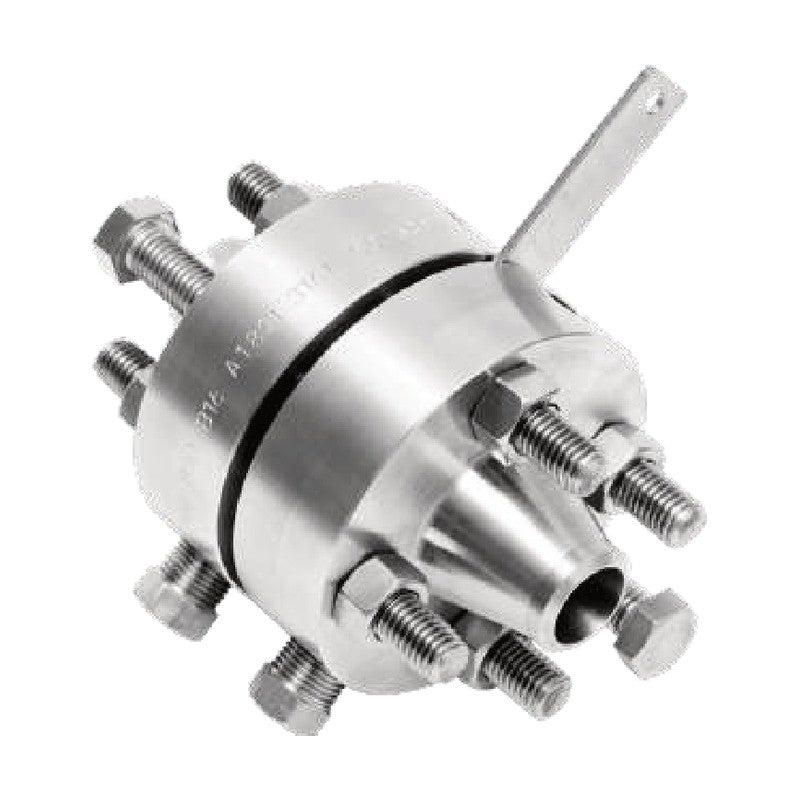

F500 Product: Orifice Plate & Flange Assembly | Nominal Pipe Size: 25A-600A, 1”-24” | Flange Material: A105, A182-F304, A182-F316, A182-F11, Etc. | Plate (Element) Material: 316LSS, Monel, Hastelloy-C, Etc. | Orifice Bore Type: Concentric square edged / Quadrant edged orifice / Eccentric orifice / Segmental orifice | Flow Calculation Standards: ISO 5167-1 and 2 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F510 Product: Integral Flow Orifice Assembly | Line Size: 15A-40A, 1/2”-1-1/2” | Main Material: Stainless steel(304SS, 316SS) | Plate(Element) Material: 316LSS, Monel, Hastelloy-C, Etc. | Orifice Bore Type: Concentric square edged | Transmitter Connection: 2-1/8”(54mm) Center to Center. / DIN 19213 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F700 Product: Venturi Tube | Venturi Type: Fabricated, Machined | Nomainal Pipe Size: 50A-1200A, 2”-48” | Main Material: Carbon steel(C.S) / Stainless steel(304SS, 316SS) / Etc. | Flow Calculation Standards: ISO 5167-4 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F761 Product: Gear Drive Type Averating Pitot Tube | Nomainal Pipe Size: 100A-600A, 4”-24” | Process Connection: Flanged(1-1/2” to 2”) | Main Material: Stainless steel(304SS, 316SS) / Monel / Etc. | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
Flow MeasurementWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE Differential-Pressure Flow Elements

Brand WISE·Flow Measurement

Available part numbers (4)

F500, F510, F700, F761

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
WISE Differential-Pressure Flow ElementsWISE Differential-Pressure Flow ElementsWISE Differential-Pressure Flow Elements
0 selected
RFQ List (0)
Product codeSpec
F500Product: Orifice Plate & Flange Assembly | Nominal Pipe Size: 25A-600A, 1”-24” | Flange Material: A105, A182-F304, A182-F316, A182-F11, Etc. | Plate (Element) Material: 316LSS, Monel, Hastelloy-C, Etc. | Orifice Bore Type: Concentric square edged / Quadrant edged orifice / Eccentric orifice / Segmental orifice | Flow Calculation Standards: ISO 5167-1 and 2 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F510Product: Integral Flow Orifice Assembly | Line Size: 15A-40A, 1/2”-1-1/2” | Main Material: Stainless steel(304SS, 316SS) | Plate(Element) Material: 316LSS, Monel, Hastelloy-C, Etc. | Orifice Bore Type: Concentric square edged | Transmitter Connection: 2-1/8”(54mm) Center to Center. / DIN 19213 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F700Product: Venturi Tube | Venturi Type: Fabricated, Machined | Nomainal Pipe Size: 50A-1200A, 2”-48” | Main Material: Carbon steel(C.S) / Stainless steel(304SS, 316SS) / Etc. | Flow Calculation Standards: ISO 5167-4 | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
F761Product: Gear Drive Type Averating Pitot Tube | Nomainal Pipe Size: 100A-600A, 4”-24” | Process Connection: Flanged(1-1/2” to 2”) | Main Material: Stainless steel(304SS, 316SS) / Monel / Etc. | Rangeability: 5 : 1 | Accuracy: ±1.0% of Full Scale
