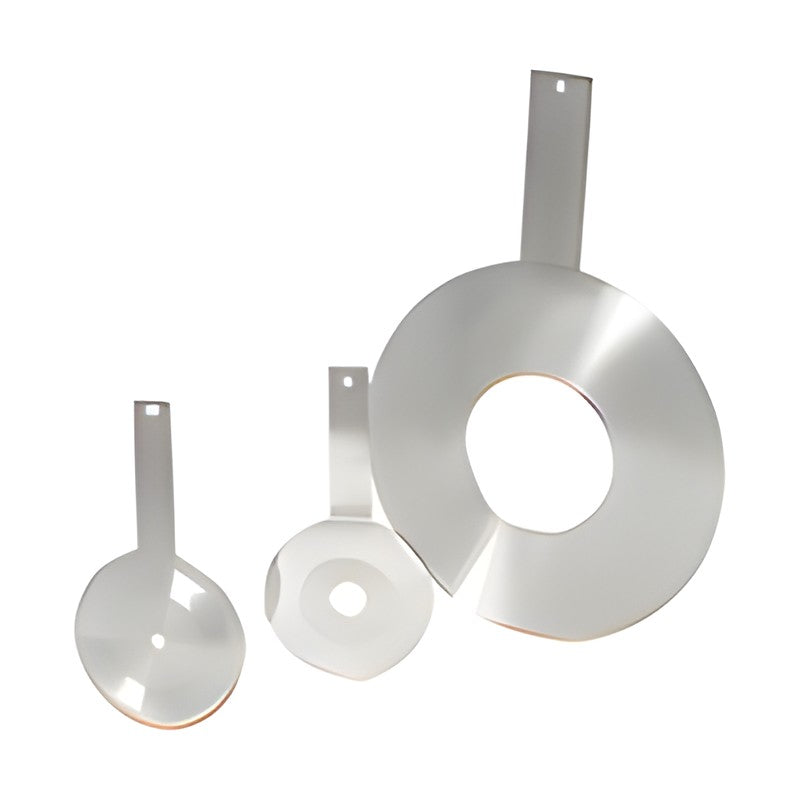

WISE F100 Orifice Plate

The WISE F100 orifice plate is a differential-pressure primary flow element for liquids, gases and steam. It is available with concentric square-edge, quadrant-edge, eccentric and segmental bores for clean, dirty or viscous service.

Key features

Concentric square-edge, quadrant-edge, eccentric and segmental bore types
Plate thickness 3, 6, 9 and 12 mm with welded tab handle
Tab handle stamped 'Upstream' with bore, line size, tag and rating
Drain and vent holes per ASME recommendations
Flange, corner, vena contracta, radius and pipe taps

Specifications

Bore types	Concentric square edge, quadrant edge, eccentric, segmental
Line size	15A-1,000A (1/2"-40")
Plate thickness	3, 6, 9, 12 mm
Plate material	304SS, 316L SS; Monel, Hastelloy C, titanium on request
Flange ratings	JIS 10K-63K, ANSI 150-2500 Lb, DIN PN10-PN40
Pressure taps	Flange, corner, vena contracta, 1D-1/2D radius, pipe (2.5D-8D)
Calculation standards	ISO 5167-1/2, AGA-3, ASME MFC-3M/14M, JIS Z 8762, BS 1042
Ordering options	Line size, bore type, flange rating, plate material, drain/vent, options
Source	WISE data sheet FD01-01
