WISE F200 Orifice Plate With Ring

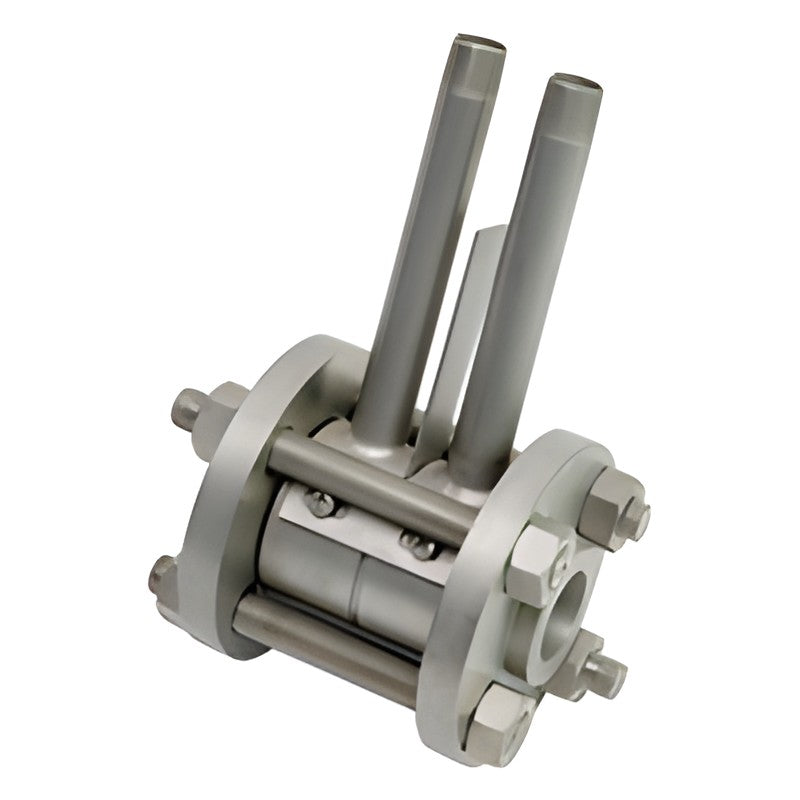

The WISE F200 orifice ring assembly combines one orifice plate and two orifice rings for flow measurement in small and medium pipes at lower pressure, with differential pressure taken from corner taps.

Key features

Assembly of one orifice plate and two carrier rings
Corner tap differential pressure take-off
Concentric, quadrant-edge and multi-hole bores
Pressure tap nipples 1/2" Sch 40/80, 75 or 150 mm long
Non-asbestos or Teflon gaskets included

Specifications

Bore types	Concentric square edge, quadrant edge, multi-hole, eccentric, segmental
Line size	1/2"-14" (15A-350A)
Plate thickness	3, 6, 9, 12 mm and over
Materials	Ring and nipple 304SS/316SS; plate 304SS, 316L SS, Monel
Flange ratings	JIS 5K/10K, ANSI (JPI) 150 Lb and other
Pressure taps	Corner taps
Tap connections	1/2" PT or NPT male, socket weld, butt weld, flange
Gaskets	Non-asbestos or Teflon, 1.5/2.0/3.0 mm
Calculation standards	ISO 5167-1/2, AGA-3, ASME MFC-3M/14M, JIS Z 8762, BS 1042
Ordering options	Line size, connection, element type/material, ring material, drain/vent, tap connection, calibration test
Source	WISE data sheet FD02-01

F200

Type: Plate and ring assembly | Size: 1/2"-14" | Taps: Corner
