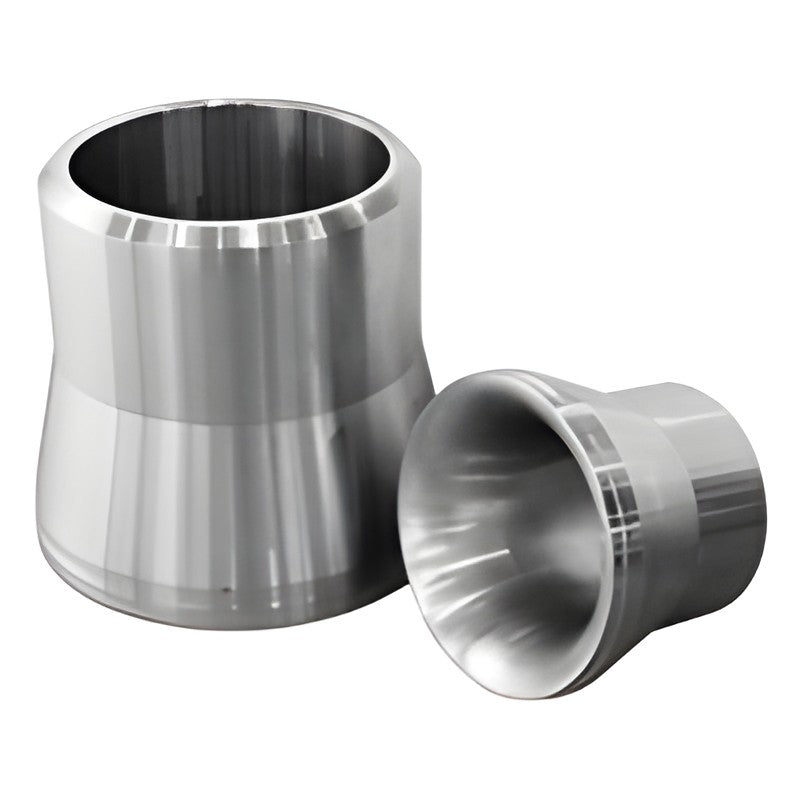

WISE F600 Flow Nozzle

The WISE F600 flow nozzle measures high-temperature, high-pressure and high-velocity flows. Compared with an orifice of the same bore it passes more flow, is mechanically stronger and better tolerates solids.

Key features

Long-radius (low and high beta) and ISA 1932 nozzles
Weld-in, holding ring and flanged mounting
Radius (1D-1/2D) or throat taps
Available with welded upstream and downstream pipe spools
Alloy and stainless A182 materials

Specifications

Line size	50-630 mm (2"-25")
Mounting	Weld-in, holding ring, flanged
Pressure taps	1D and 1/2D tap, throat tap
Beta ratio	0.2-0.8 (low beta 0.2-0.5, high beta 0.25-0.8)
Nozzle material	A182 F11, F22, F91, F304, F316/F316L
Pipe material	A106 Gr.B/C, A335 P11/P22/P91
Calculation standards	ISO 5167-3, JIS Z 8762, ASME MFC-3M
Ordering options	Type, line size, tap type, end connection, element/pipe/ring material, boss size, inspection port
Source	WISE data sheet FD06-01

F600

Mount: Weld-in/ring/flanged | Size: 2"-25"

Flow ElementsWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F600 Flow Nozzle

Brand WISE·Flow Elements

Available part numbers (1)

F600

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
