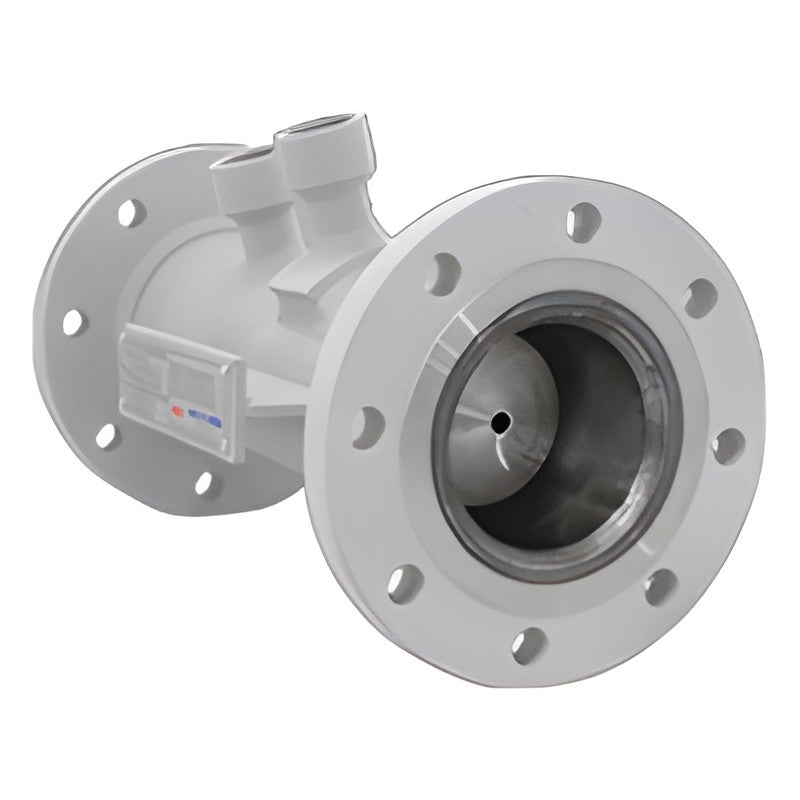

WISE F750 Venturi Cone Flowmeter

The WISE F750 venturi cone is a differential-pressure flowmeter whose contoured cone conditions the flow, giving high accuracy and repeatability with minimal straight-pipe requirement. It handles clean or dirty liquids, wet gases and slurries.

Key features

Accuracy from +/-0.5 % of actual flow
Repeatability +/-0.1 % or better
Only 0-3D upstream and 0-1D downstream straight run
No moving parts, low maintenance
Calibrated for customer application; ASME B31.3 construction available

Specifications

Line size	0.5"-120" or larger
Accuracy	From +/-0.5 % of actual flow
Repeatability	+/-0.1 % or better
Flow range	10:1 and greater
Beta ratio	0.45-0.80 standard
Materials	Duplex SS, 304SS, 316SS, Hastelloy C-276, carbon steel
End fittings	Flanged, threaded, hub or weld end
Ordering options	Beveled/flanged end, line size, body material, flange rating/material, boss material
Source	WISE data sheet FD07-02

F750

End: Beveled or flanged | Size: 0.5"-120"

Flow ElementsWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F750 Venturi Cone Flowmeter

Brand WISE·Flow Elements

Available part numbers (1)

F750

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
