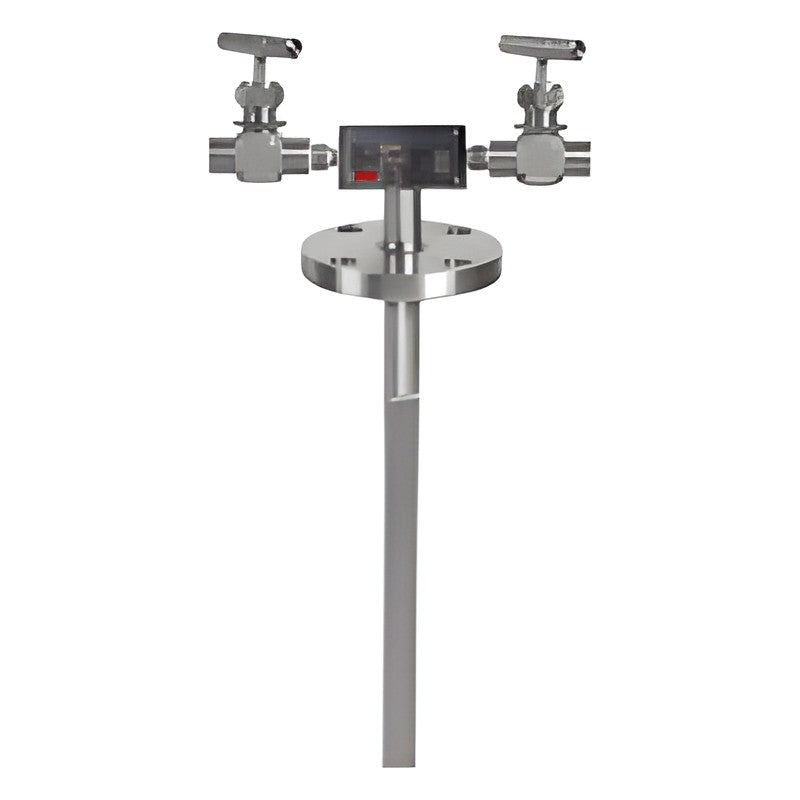

WISE F760 Averaging Pitot Tube

The WISE F760 averaging pitot tube measures liquid, gas and steam flow in pipes, stacks and ducts with low permanent pressure loss. Dual averaging of the impact pressure gives stable long-term accuracy.

Key features

Dual averaging for better accuracy
Low permanent pressure loss for energy saving
Short upstream and downstream straight runs
Long-term accuracy unaffected by wear
Single or double support, optional tap valves

Specifications

Media	Liquid, gas, steam
Pipe size	50-1,000 mm (2"-40")
Accuracy	+/-1 % of actual flow rate
Rangeability	5:1
Max. working pressure	900 Lb
Max. working temperature	600 C
Material	304SS, 316SS, 316L SS, Monel
Mounting connection	2"/2-1/2" ANSI 150/300 Lb RF, 50A/65A JIS 10K-20K RF
Ordering options	Line size, mounting, support type, sensor material, tap valve (needle/ball), calibration test
Source	WISE data sheet FD07-03

F760

Size: 2"-40" | Accuracy: +/-1 % of rate | Max. temp.: 600 C
