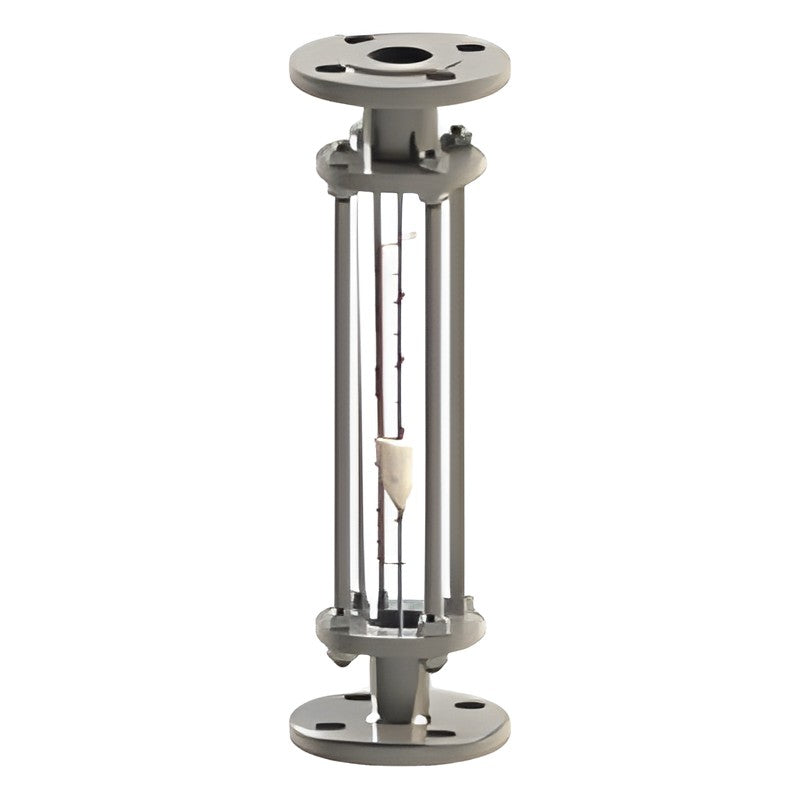

WISE F801 Glass Tube Flowmeter, Flanged

The WISE F801 is a flanged stainless steel glass tube (variable area) flowmeter for instantaneous liquid or gas flow indication in vertical lines.

Key features

Simple, economical construction
Pyrex taper tube with stainless steel body
Four flow direction hook-ups
Easy installation and maintenance

Specifications

Media	Liquid, gas
Meter size	15A-100A (1/2"-4")
Accuracy	+/-3.0 % of full scale
Max. pressure	10 kgf/cm2
Max. temperature	120 C
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16
Body material	304SS, 316SS, 316L SS
Float / packing	304SS, 316SS, 316L SS, PVC, PTFE, Acetal / NBR, Viton, EPDM, PTFE
Flow direction	Bottom-top, bottom-side, side-top, side-side
Ordering options	Flow direction, meter size, connection, body material
Source	WISE data sheet FD08-01

F801

Conn: Flanged | Size: 15A-100A | Accuracy: +/-3 % FS
