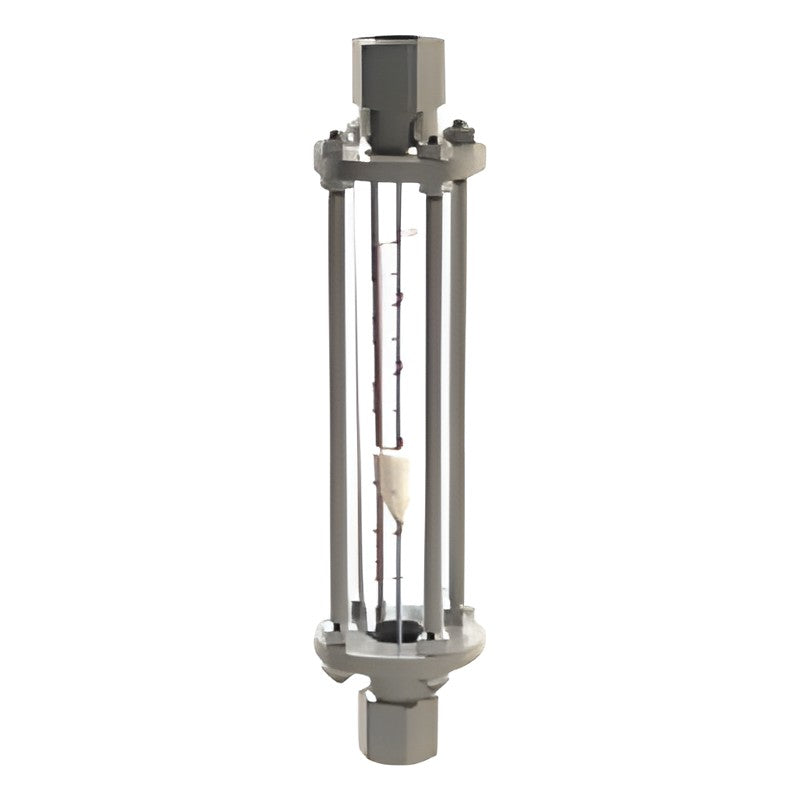

WISE F802 Glass Tube Flowmeter, Screwed

The WISE F802 is a screwed-end stainless steel glass tube flowmeter for instantaneous liquid or gas flow indication in vertical lines.

Key features

PT or NPT screwed connection
Pyrex taper tube with stainless steel body
Four flow direction hook-ups
Simple, economical construction

Specifications

Media	Liquid, gas
Meter size	15A-100A (1/2"-4")
Accuracy	+/-3.0 % of full scale
Max. pressure	10 kgf/cm2
Max. temperature	120 C
Connection	Screwed PT or NPT
Body material	304SS, 316SS, 316L SS
Float / packing	304SS, 316SS, 316L SS, PVC, PTFE, Acetal / NBR, Viton, EPDM, PTFE
Flow direction	Bottom-top, bottom-side, side-top, side-side
Ordering options	Flow direction, meter size, connection, body material
Source	WISE data sheet FD08-02

F802

Conn: PT/NPT screwed | Size: 15A-100A
