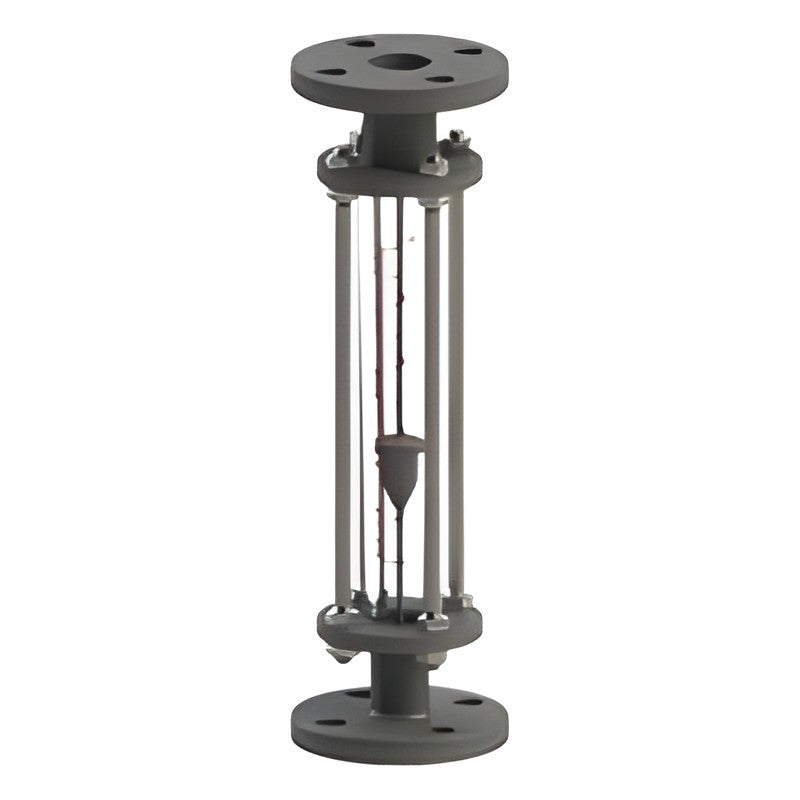

WISE F803 PVC Glass Tube Flowmeter

The WISE F803 glass tube flowmeter has a PVC body for chemical and corrosive liquid or gas service in vertical lines.

Key features

PVC, UPVC or CPVC main parts for corrosive media
Pyrex taper tube
Flanged or screwed connection
Simple, economical construction

Specifications

Media	Liquid, gas
Meter size	15A-100A (1/2"-4")
Accuracy	+/-3.0 % of full scale
Max. pressure	5 kgf/cm2
Max. temperature	60 C
Connection	Flanged (FF) JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT
Body material	PVC, UPVC, CPVC
Float / packing	PVC, PTFE, PE, Acetal / NBR, Viton, EPDM
Flow direction	Bottom to top
Ordering options	Meter size, connection, body material
Source	WISE data sheet FD08-03

F803

Body: PVC | Size: 15A-100A | Max. temp.: 60 C

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F803 PVC Glass Tube Flowmeter

Brand WISE·Flowmeters

Available part numbers (1)

F803

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
