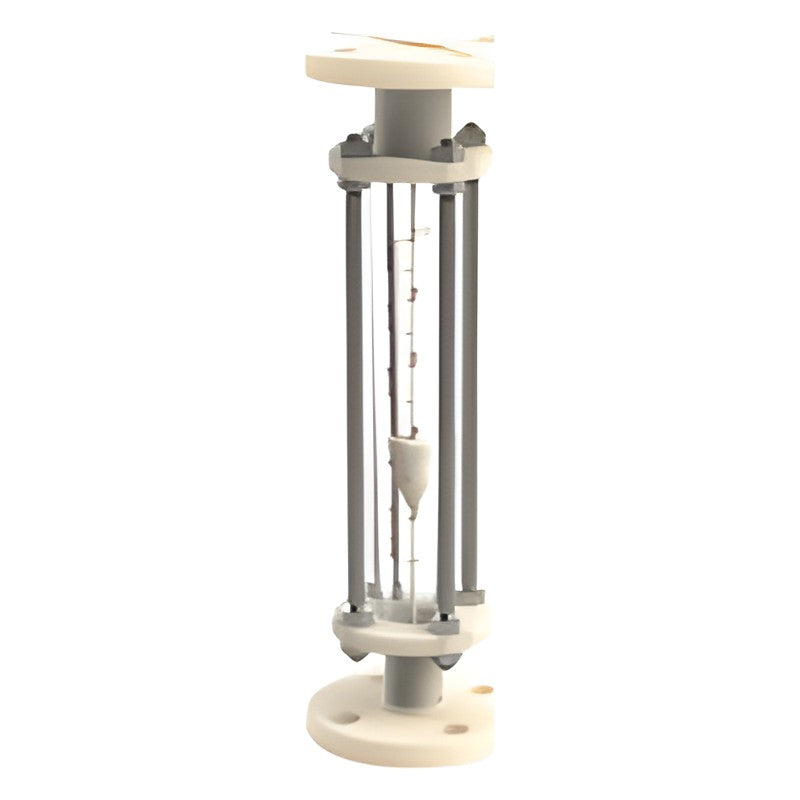

WISE F804 PTFE Glass Tube Flowmeter

The WISE F804 glass tube flowmeter has a PTFE body for chemical and corrosive liquid or gas service in vertical lines.

Key features

PTFE main parts for corrosive media
Pyrex taper tube
Flanged or screwed connection
Simple, economical construction

Specifications

Media	Liquid, gas
Meter size	15A-100A (1/2"-4")
Accuracy	+/-3.0 % of full scale
Max. pressure	5 kgf/cm2
Max. temperature	120 C
Connection	Flanged (FF) JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT
Body material	PTFE
Float / packing	PVC, PTFE, PE, Acetal / NBR, Viton, EPDM, PTFE
Flow direction	Bottom to top
Ordering options	Meter size, connection, body material
Source	WISE data sheet FD08-04

F804

Body: PTFE | Size: 15A-100A | Max. temp.: 120 C
