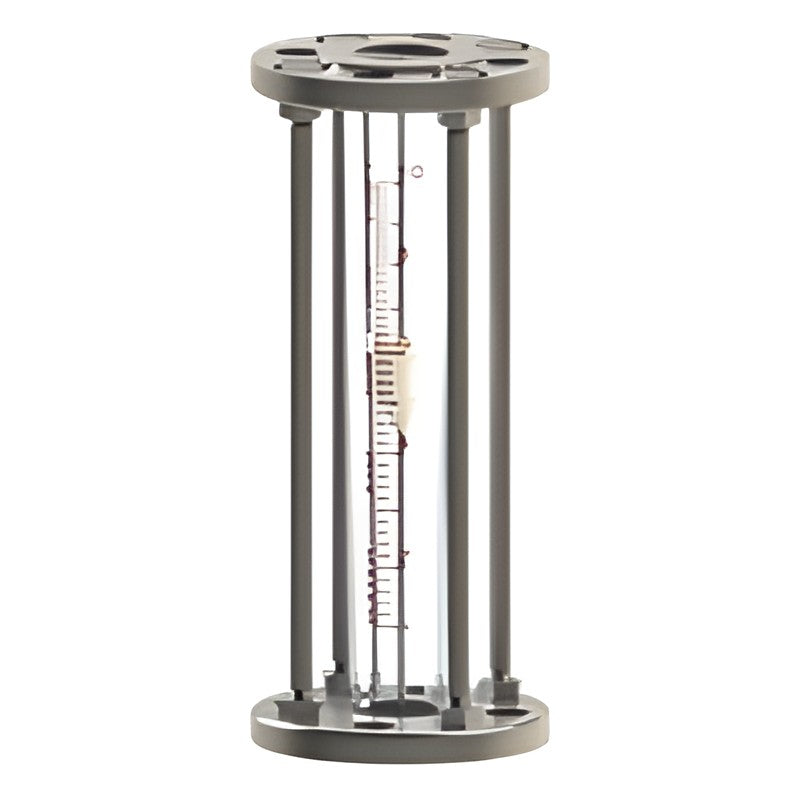

WISE F808 Compact Glass Tube Flowmeter

The WISE F808 glass tube flowmeter is built for installations where space is limited and can be supplied with electrical signal output.

Key features

Short body for limited installation space
Electrical signals can be added
Flanged connection
Easy installation and maintenance

Specifications

Media	Liquid, gas
Meter size	15A-50A (1/2"-2")
Accuracy	+/-3.0 % of full scale
Max. pressure	8 kgf/cm2
Max. temperature	120 C
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16
Body material	304SS, 316SS, 316L SS, PTFE, PVC
Float / packing	304SS, 316SS, PVC, PTFE, Acetal / NBR, Viton, EPDM, PTFE
Flow direction	Bottom to top
Ordering options	Meter size, connection, body material
Source	WISE data sheet FD08-08

F808

Design: Compact | Size: 15A-50A | Max. pressure: 8 kgf/cm2
