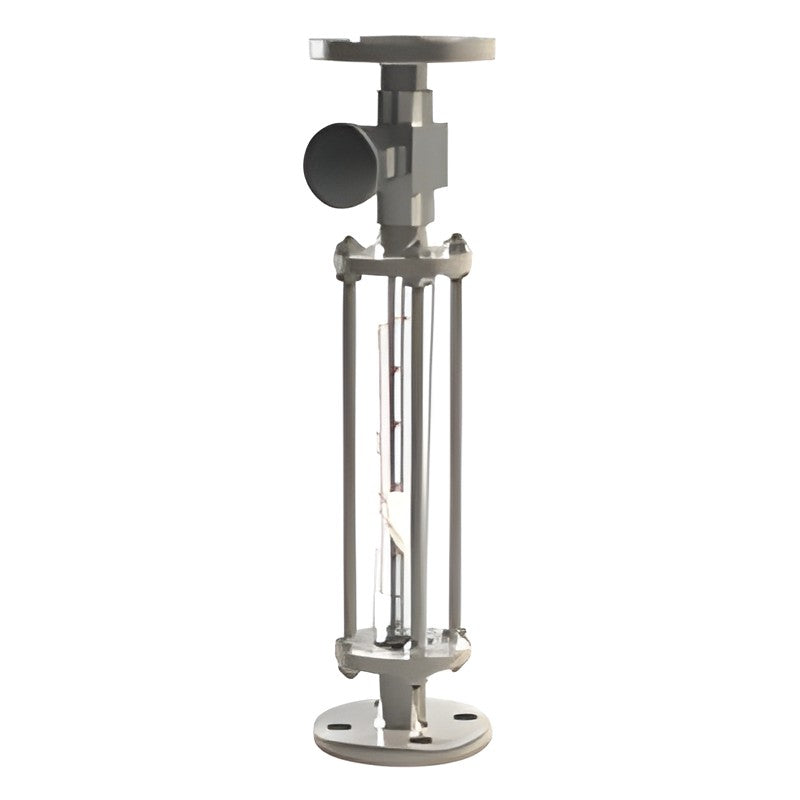

WISE F810 Glass Tube Flowmeter With Valve

The WISE F810 glass tube flowmeter comes with an attached valve for flow indication and adjustment of liquids or gases in vertical lines.

Key features

Integral valve for flow adjustment
Flanged or screwed connection
Stainless steel body
Easy installation and maintenance

Specifications

Media	Liquid, gas
Meter size	15A-65A (1/2"-2-1/2")
Accuracy	+/-3.0 % of full scale
Max. pressure	10 kgf/cm2
Max. temperature	120 C
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT
Body material	304SS, 316SS, 316L SS
Float / packing	304SS, 316SS, 316L SS, PVC, PTFE, Acetal / NBR, Viton, EPDM, PTFE
Flow direction	Bottom to top
Ordering options	Meter size, connection, body material
Source	WISE data sheet FD08-10

F810

Design: With valve | Size: 15A-65A | Accuracy: +/-3 % FS

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F810 Glass Tube Flowmeter With Valve

Brand WISE·Flowmeters

Available part numbers (1)

F810

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
