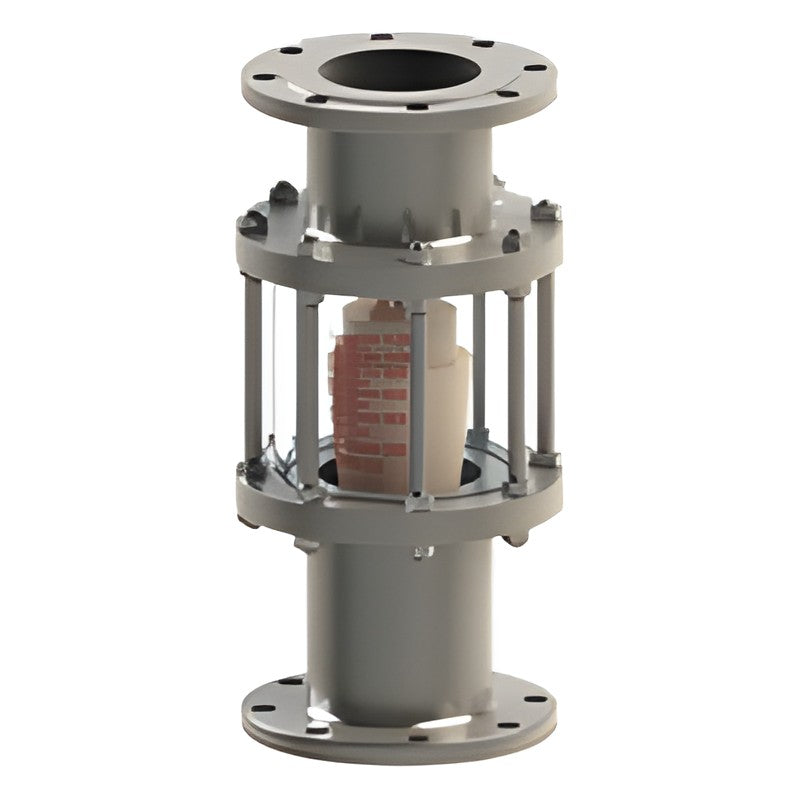

WISE F812 Large Flow Glass Tube Flowmeter

The WISE F812 glass tube flowmeter is designed for large flow ranges in 65A-200A vertical lines.

Key features

Designed for large flow ranges
65A-200A meter sizes
Tempered glass tube
Flanged connection

Specifications

Media	Liquid, gas
Meter size	65A-200A (2-1/2"-8")
Accuracy	+/-3.0 % of full scale
Max. pressure	5 kgf/cm2
Max. temperature	120 C
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16
Body material	304SS, 316SS, 316L SS
Float	304SS, 316SS, 316L SS, PVC, PTFE, Acetal
Tube	Tempered glass
Ordering options	Meter size, connection, body material
Source	WISE data sheet FD08-12

F812

Range: Large flow | Size: 65A-200A | Accuracy: +/-3 % FS

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F812 Large Flow Glass Tube Flowmeter

Brand WISE·Flowmeters

Available part numbers (1)

F812

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
