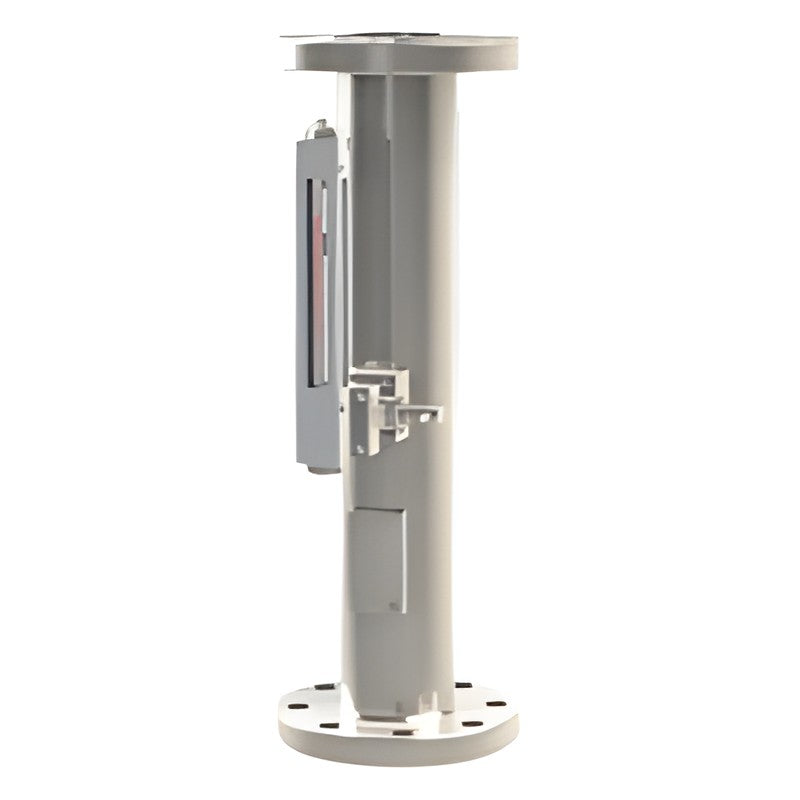

WISE F820 Orifice Flowmeter

The WISE F820 orifice flowmeter measures liquids and gases (steam optional) by differential pressure with a local indicator. It suits high-pressure and high-temperature service from small to large line sizes.

Key features

Flanged connection
Usable at high pressure and temperature
Line sizes from 10A to 500A
Easy to operate and maintain

Specifications

Media	Liquid, gas (steam option)
Meter size	10A-500A
Accuracy	+/-3.0 % of full scale
Pressure rating	10 kgf/cm2 standard; 20 kgf/cm2 option
Temperature	0-100 C operation; 200 C option
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16
Materials	Body/flange 304SS, 316SS, 316L SS; indicator 304SS, 316SS, bronze
Flow direction	Bottom-top, side-side, top-bottom
Ordering options	Flow direction, meter size, connection, body material
Source	WISE data sheet FD08-13

F820

Size: 10A-500A | Conn: Flanged | Accuracy: +/-3 % FS
