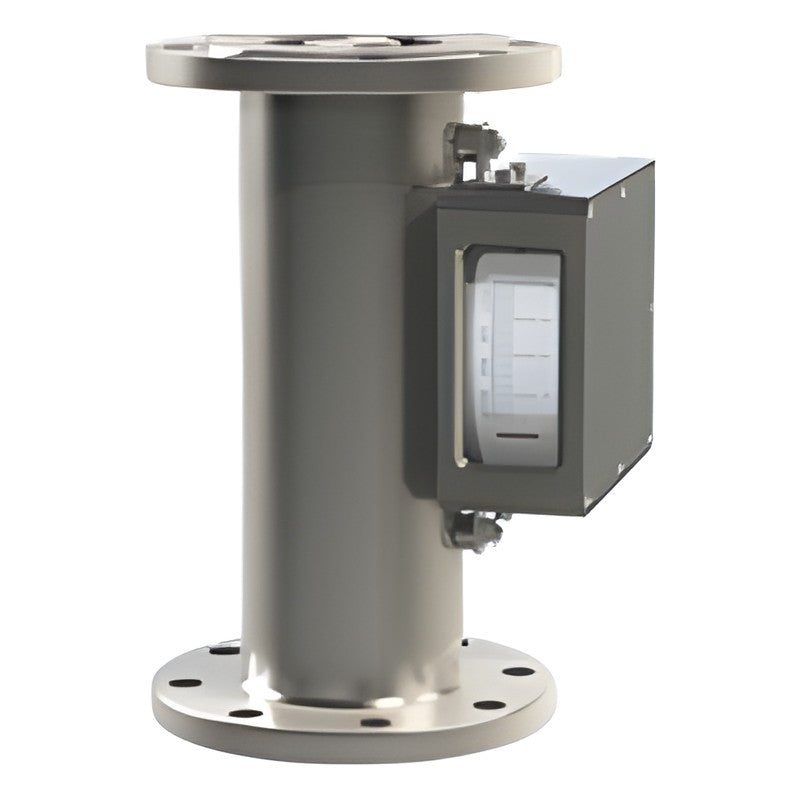

WISE F825 Metal Tube Flowmeter

The WISE F825 metal tube flowmeter uses a tapered metal tube and local indicator to measure liquids and gases at high pressure and temperature, with bottom-to-top flow.

Key features

High pressure and temperature service
Local indicator
Flanged, screwed or clamp ends
Simple, economical construction

Specifications

Media	Liquid, gas
Meter size	15A-200A (1/2"-8")
Accuracy	+/-3.0 % of full scale
Pressure rating	10 kgf/cm2 standard
Temperature	0-120 C operation; 300 C max.
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT; clamp
Body material	304SS, 316SS, 316L SS
Flow direction	Bottom to top
Ordering options	Meter size, body material, connection, local indicator
Source	WISE data sheet FD08-18

F825

Flow: Bottom-top | Size: 15A-200A

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F825 Metal Tube Flowmeter

Brand WISE·Flowmeters

Available part numbers (1)

F825

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
