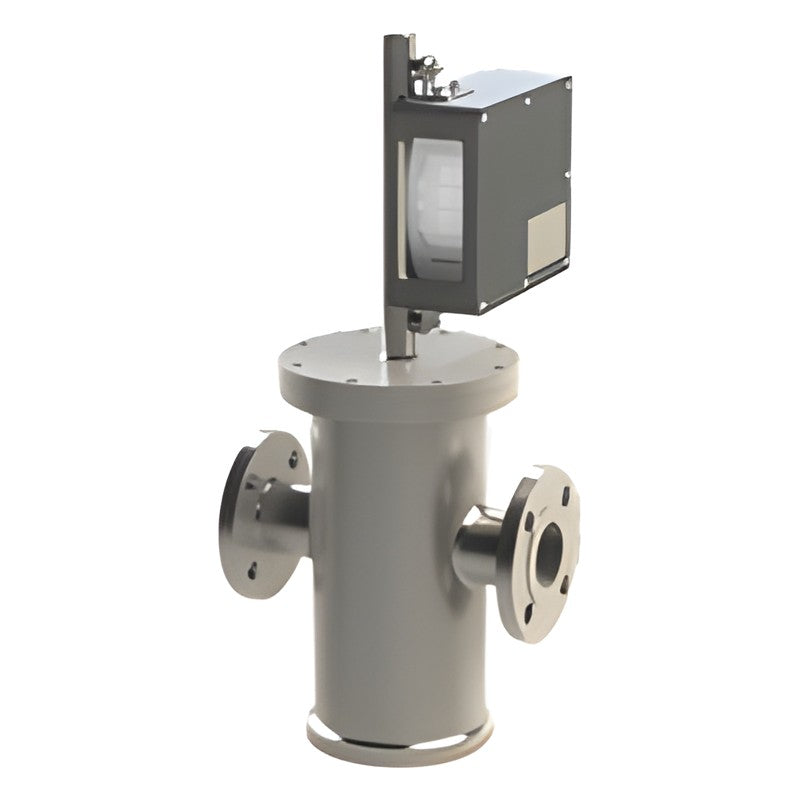

WISE F826 Metal Tube Flowmeter, Side to Side

The WISE F826 metal tube flowmeter has side-inlet, side-outlet flow with a top-mounted local indicator for liquids and gases at high pressure and temperature.

Key features

Side-to-side flow arrangement
High pressure option to 60 kgf/cm2
Local indicator
Flanged, screwed or clamp ends

Specifications

Media	Liquid, gas
Meter size	15A-200A (1/2"-8")
Accuracy	+/-3.0 % of full scale
Pressure rating	10 kgf/cm2 standard; 60 kgf/cm2 option
Temperature	0-120 C operation; 300 C max.
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT; clamp
Body material	304SS, 316SS, 316L SS; others on request
Flow direction	Side to side
Ordering options	Meter size, body material, connection, local indicator
Source	WISE data sheet FD08-19

F826

Flow: Side-side | Size: 15A-200A

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F826 Metal Tube Flowmeter, Side to Side

Brand WISE·Flowmeters

Available part numbers (1)

F826

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
