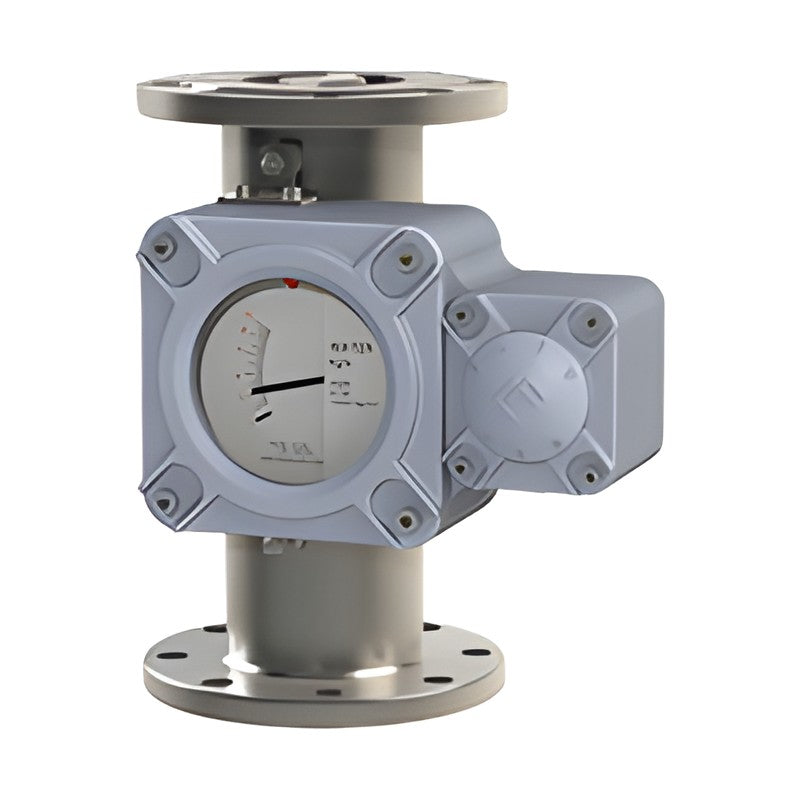

WISE F828 Explosion-Proof Metal Tube Flowmeter

The WISE F828 metal tube flowmeter with Ex d IIC T5 indicator/transmitter housing is designed for liquids and gases at high pressure and temperature in hazardous areas.

Key features

Explosion-proof Ex d IIC T5
High pressure option to 60 kgf/cm2
Four flow direction hook-ups
Local indicator

Specifications

Media	Liquid, gas
Meter size	15A-200A (1/2"-8")
Accuracy	+/-3.0 % of full scale
Pressure rating	10 kgf/cm2 standard; 60 kgf/cm2 option
Temperature	0-120 C operation; 300 C max.
Ex-proof	Ex d IIC T5
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16
Materials	Body/float/flange 304SS, 316SS, 316L SS; sight scale acrylic, PC, glass
Flow direction	Bottom-top, bottom-side, side-top, side-side
Ordering options	Flow direction, meter size, body material, connection
Source	WISE data sheet FD08-20

F828

Ex-proof: Ex d IIC T5 | Size: 15A-200A | Accuracy: +/-3 % FS

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F828 Explosion-Proof Metal Tube Flowmeter

Brand WISE·Flowmeters

Available part numbers (1)

F828

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
