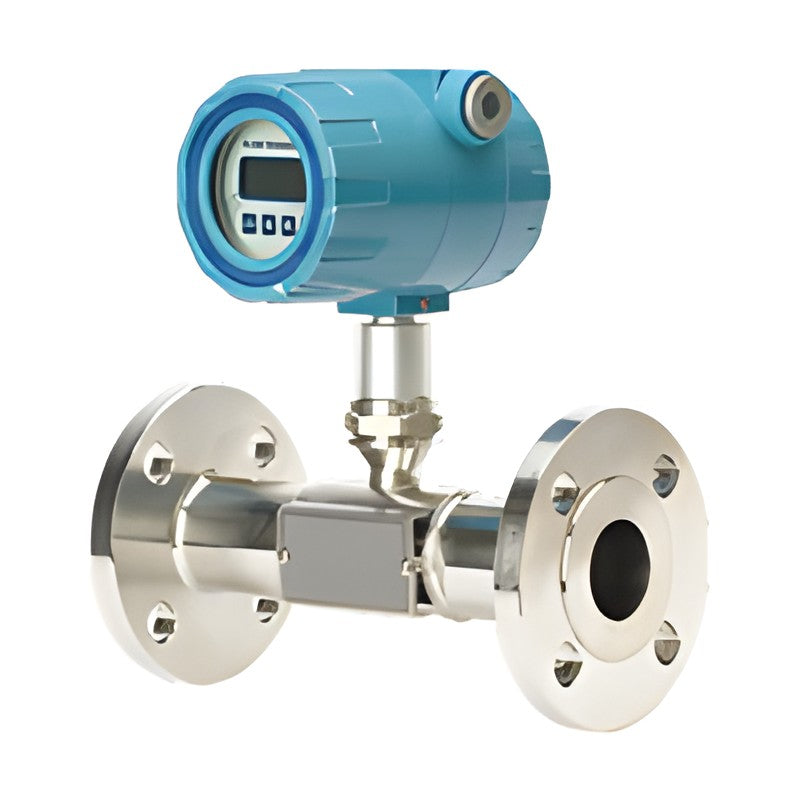

WISE F901 Turbine Flowmeter

The WISE F901 is a Woltmann-type volumetric turbine flowmeter for liquids, displaying flow rate and totals on a 2-line LCD with 4-20 mA and pulse outputs. Ex d enclosures are available.

Key features

Flow rate, total and accumulated total display
4-20 mA (isolated) and pulse outputs
RS-485 and alarm options
DC 24 V, AC or lithium battery power
Ex d IIC T4/T5 enclosure options

Specifications

Media	Liquid
Meter size	10A-250A
Accuracy	+/-1.0 % of full scale
Repeatability	+/-0.1 %
Pressure rating	10 kgf/cm2 standard; 300 kgf/cm2 option
Temperature	-20 to 100 C (120 C max.); 200 C option
Output	4-20 mA isolated, pulse (open collector); RS-485, alarm option
Power supply	DC 24 V (4-wire), AC 100-220 V, lithium battery
Enclosure	Ex d IIC T4 / Ex d IIC T5
Connection	Flanged JIS 10K, ANSI 150 Lb, DIN PN16; screwed PT/NPT; clamp
Body material	304SS, 316L SS
Ordering options	Power, meter size, body material, connection
Source	WISE data sheet FD09-01

F901

Size: 10A-250A | Accuracy: +/-1 % FS | Output: 4-20 mA, pulse
