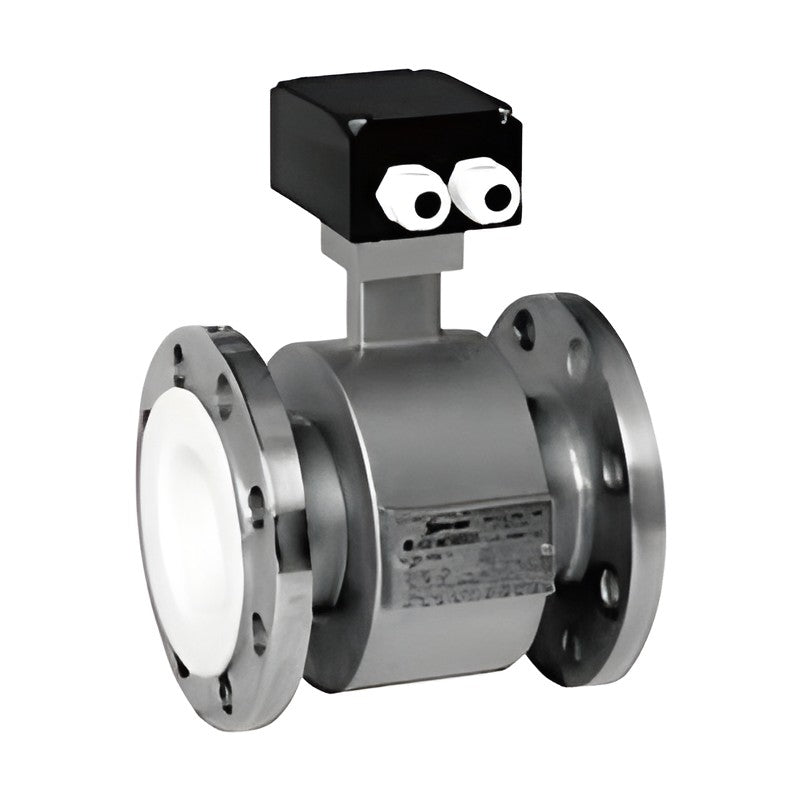

WISE F951 Electromagnetic Flowmeter, Remote Type

The WISE F951 separated-type electromagnetic flowmeter measures conductive liquids, pulp and slurries above 10 uS/cm with a flowmeter primary and remote-mounted converter. It causes no pressure drop and has no moving parts.

Key features

Separate sensor and remote converter (5 m cable, up to 30 m)
+/-0.5 % FS accuracy (15-800A)
Hard rubber or PTFE lining
4-20 mA, pulse and RS-485 outputs
IP67 sensor and converter
Self check, empty pipe detection, reverse flow, data logging

Specifications

Size	15A-1,000A (1/2"-40")
Measuring range	0.2-10 m/s
Accuracy	+/-0.5 % FS (15-800A); +/-1.0 % FS (900A and up)
Lining	Hard rubber (0-60 C); PTFE (-10 to 160 C, max. 400A)
Electrode	Titanium; 316L SS, Hastelloy C, Pt-Ir, tantalum option
Conductivity	>= 10 uS/cm (>= 5 uS/cm option)
Process connection	Flanged ANSI, ASME, DIN, JIS, KS
Power supply	AC 85-250 V; DC 24 V option
Output	4-20 mA isolated active, open collector pulse, RS-485
Protection	IP67 sensor and converter
Ordering options	Meter size, flange, electrode, ground ring, lining, cable length
Source	WISE data sheet FD09-04

F951

Type: Remote converter | Size: 15A-1,000A | Accuracy: +/-0.5 % FS

FlowmetersWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE F951 Electromagnetic Flowmeter, Remote Type

Brand WISE·Flowmeters

Available part numbers (1)

F951

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
