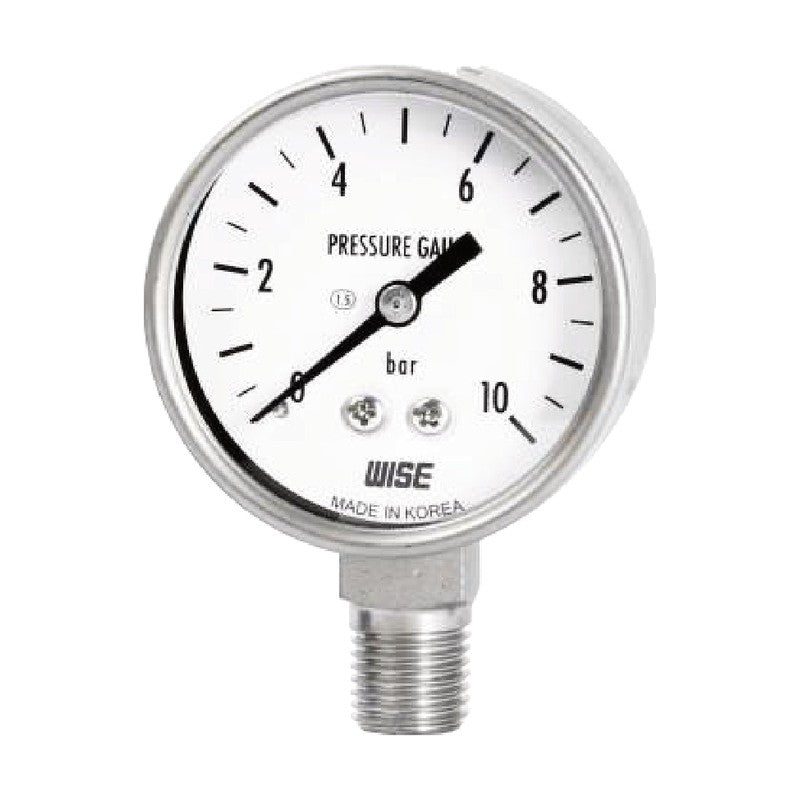

WISE Industrial Pressure Gauges

WISE Industrial Pressure Gauges

Stainless-steel Bourdon-tube and diaphragm pressure gauges for general process, safety-pattern, low-pressure and diaphragm-seal service.

Specifications

Industries (catalogs) Battery and Clean Energy, General Process, Semiconductor
WISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure Gauges
P221 Product: Industrial Service Pressure Gauge (40, 50mm) | Dial: 40 and 50mm | Accuracy: 40mm: ±3.0% of full scale / 50mm: ±1.5% of full scale | Range: 0~0.2, 0.3, 0.4, 0.6, 1, 1.5, 3.5MPa | Working Pressure: Steady: 75% of full scale | Over Range Protection: 130% of full scale | Process Connection: Stainless Steel 316SS 1/8”, 1/4” PT, NPT and PF
P252 Product: Industrial Service Pressure Gauge | Dial: 63, 80, 100 and 160mm | Range: -0.1~0 to 0~200MPa | Case: 304SS | Element: 316SS | Process Connection: 63mm: ⅛”, ¼” PT, NPT and PF / 80mm: ¼”, ⅜” PT, NPT and PF / 100 and 160mm: ¼”, ⅜”, ½” PT, NPT and PF
P257 Product: Safety Pattern Type Pressure Gauge | Dial: 63, 100 and 160mm | Range: -0.1~0 to 0~200MPa | Case: 304SS | Element: 316SS | Process Connection: 63mm: ⅛”, ¼” PT, NPT and PF / 100 and 160mm: ¼”, ½”, ⅜” PT, NPT and PF
P421 Product: Low Pressure Gauge | Dial: 100 and 150mm | Range: -35~0 to 0~35kPa | Case: 304SS | Element: 316L SS | Process Connection: ¼”, ⅜”, ½” PT, NPT and PF
P710 Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P720 Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P730 Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P757 Product: Flush Diaphragm Type Pressure Gauge | Dial: 63, 80 and 100mm | Accuracy: 63 and 80mm: ±1.6% of full scale / 100mm: ±1.0% of full scale | Working Pressure: Steady: 75% of full scale / Over range protection: 130% of full scale | Diaphragm: Stainless Steel(316LSS) | Process Connection: Stainless Steel(316, 316L SS) / Screw connection
P870 Product: Anti-Corrosion Pressure Gauge | Nominal Diameter: 50mm(2ˮ) | Accuracy: ±1.5% of full scale(Only available with 0.6 and 1MPa) / ±2.0% of full scale | Range: -0.1~0 to 0~1MPa | Working Pressure: Steady pressure: 75% of full scale | Working Temperature: Ambient: 10~30°C / Process: Max. 150°C | Pressure Connection: Fluorine resin(PTFE, PFA) | Element: Bellows: Fluorine resin(PFA) | Case And Cover: PP resin
Pressure GaugesWISE
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE Industrial Pressure Gauges

Brand WISE·Pressure Gauges

Available part numbers (9)

P221, P252, P257, P421, P710, P720, P730, P757, P870

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
WISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure GaugesWISE Industrial Pressure Gauges
0 selected
RFQ List (0)
Product codeSpec
P221Product: Industrial Service Pressure Gauge (40, 50mm) | Dial: 40 and 50mm | Accuracy: 40mm: ±3.0% of full scale / 50mm: ±1.5% of full scale | Range: 0~0.2, 0.3, 0.4, 0.6, 1, 1.5, 3.5MPa | Working Pressure: Steady: 75% of full scale | Over Range Protection: 130% of full scale | Process Connection: Stainless Steel 316SS 1/8”, 1/4” PT, NPT and PF
P252Product: Industrial Service Pressure Gauge | Dial: 63, 80, 100 and 160mm | Range: -0.1~0 to 0~200MPa | Case: 304SS | Element: 316SS | Process Connection: 63mm: ⅛”, ¼” PT, NPT and PF / 80mm: ¼”, ⅜” PT, NPT and PF / 100 and 160mm: ¼”, ⅜”, ½” PT, NPT and PF
P257Product: Safety Pattern Type Pressure Gauge | Dial: 63, 100 and 160mm | Range: -0.1~0 to 0~200MPa | Case: 304SS | Element: 316SS | Process Connection: 63mm: ⅛”, ¼” PT, NPT and PF / 100 and 160mm: ¼”, ½”, ⅜” PT, NPT and PF
P421Product: Low Pressure Gauge | Dial: 100 and 150mm | Range: -35~0 to 0~35kPa | Case: 304SS | Element: 316L SS | Process Connection: ¼”, ⅜”, ½” PT, NPT and PF
P710Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P720Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P730Product: Diaphragm Seal Type Pressure Gauge | Range: -0.1~2.5MPa / 0~35MPa | Under Flange: 304SS, 316SS, Monel, Hastelloy-C | Diaphragm: 316L SS, Monel, Hastelloy-C, Titanium… | Option: Diaphragm and under flange are available in PTFE / coating or PTFE lining
P757Product: Flush Diaphragm Type Pressure Gauge | Dial: 63, 80 and 100mm | Accuracy: 63 and 80mm: ±1.6% of full scale / 100mm: ±1.0% of full scale | Working Pressure: Steady: 75% of full scale / Over range protection: 130% of full scale | Diaphragm: Stainless Steel(316LSS) | Process Connection: Stainless Steel(316, 316L SS) / Screw connection
P870Product: Anti-Corrosion Pressure Gauge | Nominal Diameter: 50mm(2ˮ) | Accuracy: ±1.5% of full scale(Only available with 0.6 and 1MPa) / ±2.0% of full scale | Range: -0.1~0 to 0~1MPa | Working Pressure: Steady pressure: 75% of full scale | Working Temperature: Ambient: 10~30°C / Process: Max. 150°C | Pressure Connection: Fluorine resin(PTFE, PFA) | Element: Bellows: Fluorine resin(PFA) | Case And Cover: PP resin
