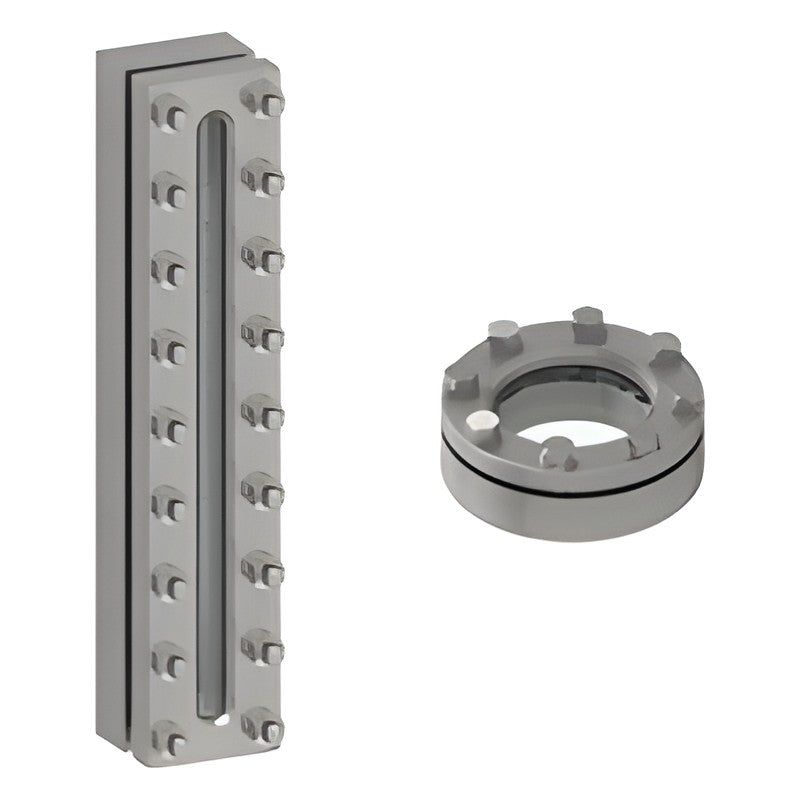

WISE L010/L020 Pad Type Level Gauge

WISE pad gauges are welded directly to a vessel or tank to show liquid level, with glass and cover held by stud bolts. L010 uses a reflex glass and L020 a round glass; both suit high-viscosity fluids at low cost.

Key features

Welds directly to vessel or tank
Reflex (L010) or round (L020) glass
Flat or round vessel surface type
Optional scale plate and non-frosting

Specifications

Glass type	Reflex (L010), circle (L020)
Visible length / glass	Reflex 90-790 mm; circle dia. 40-130 mm
Material	Carbon steel, 304/304L/316/316L SS body; CS or 304SS cover
Vessel surface	Flat or round
Options	Scale plate (reflex only, cm/mm/%), non-frosting
Ordering options	Material, vessel surface, visible length/glass size, options
Source	WISE data sheet LD01-01

L010		Glass: Reflex \| V.L: 90-790 mm
L020		Glass: Round \| Glass dia.: 40-130 mm

Level GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE L010/L020 Pad Type Level Gauge

Brand WISE·Level Gauges

Available part numbers (2)

L010, L020

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
