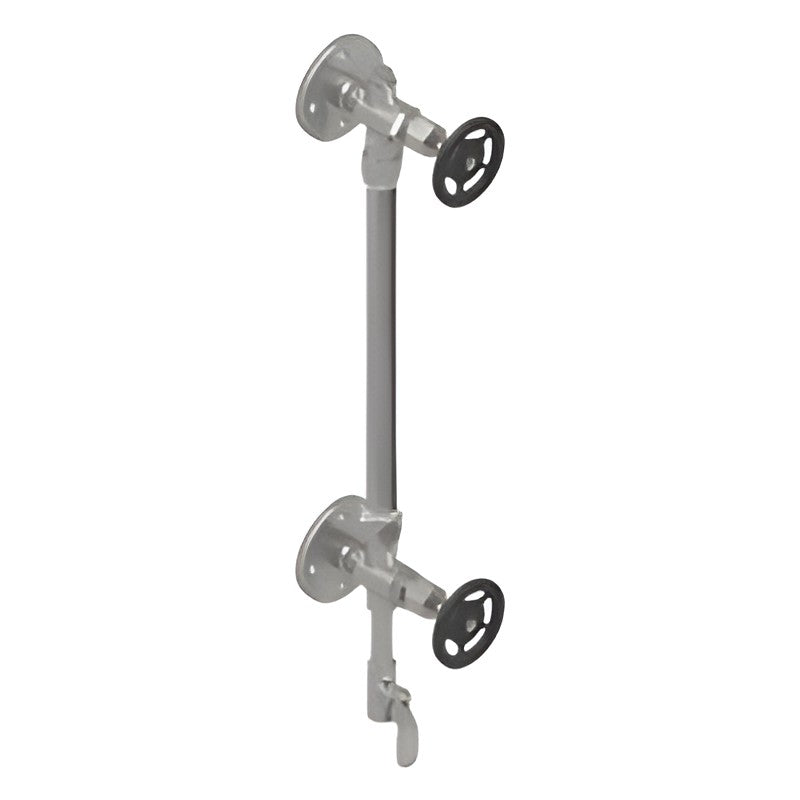

WISE L400 Tubular Level Gauge

The WISE L400 tubular level gauge is the simplest and most widely used liquid level gauge, for low-pressure service up to 0.5 MPa. Gauge valves have stainless ball checks for automatic shut-off if the tube ruptures.

Key features

Simple tubular construction
Ball check gauge valves for automatic shut-off
Flanged or screwed vessel connection
Carbon steel, stainless or PVC valves

Specifications

Working pressure	Max. 0.48 MPa
Hydro test pressure	0.73 MPa
Working temperature	Max. 100 C
Vessel connection	1/2"-2" ANSI 150/300 Lb RF, 15A-50A JIS 10K/20K RF, 1/2"-3/4" PT/NPT
Valve / tube	Carbon steel, 304SS or 316SS valve with Teflon tube; PVC
Gauge valve	Straight, off-set or none
Options	Scale plate
Ordering options	Vessel connection, valve/tube material, C to C, drain end, gauge valve, option
Source	WISE data sheet LD04-01

L400

Type: Tubular | Max. pressure: 0.48 MPa | Max. temp.: 100 C

Level GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE L400 Tubular Level Gauge

Brand WISE·Level Gauges

Available part numbers (1)

L400

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
