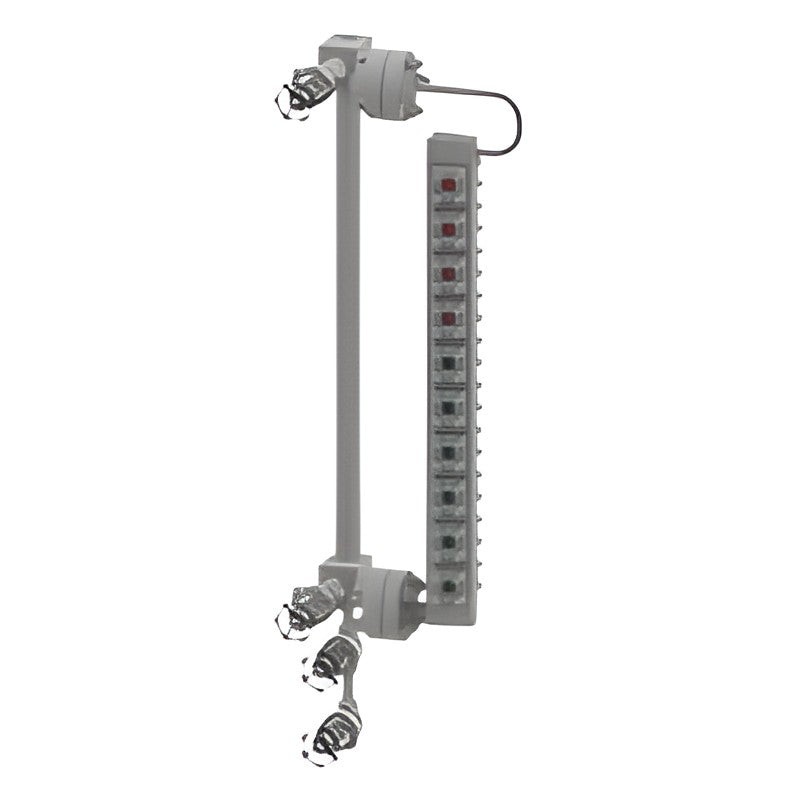

WISE L510 Multi-Port Two-Color Level Gauge

The WISE L510 multi-port two-colour level gauge shows steam in red and boiler water in green through multiple round windows. Spreading pressure and heat across several ports reduces glass breakage at high pressure and temperature.

Key features

Two-colour indication: red steam, green water
Multiple round ports, up to 10
Rated to 21.5 MPa at saturation temperature
Ex-proof or non-Ex illuminator lamp
Options: scale plate, operating chain, personal protection, switch timer

Specifications

No. of ports	Max. 10
Max. pressure	21.5 MPa
Max. temperature	Saturation temperature
Body material	A105, SA105
Vessel connection	1" or 1-1/2" socket weld
Glass	Aluminosilicate, borosilicate
Hood material	C.S, 304SS, 316SS
Lamp	Non Ex-proof or Ex-proof
C to C	0-2,500 mm
Ordering options	Material, vessel connection, hook-up, C to C, drain/vent, hood, lamp, glass, options
Source	WISE data sheet LD05-02

L510

Type: Two-color | Max. pressure: 21.5 MPa | Ports: Max. 10

Level GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE L510 Multi-Port Two-Color Level Gauge

Brand WISE·Level Gauges

Available part numbers (1)

L510

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
