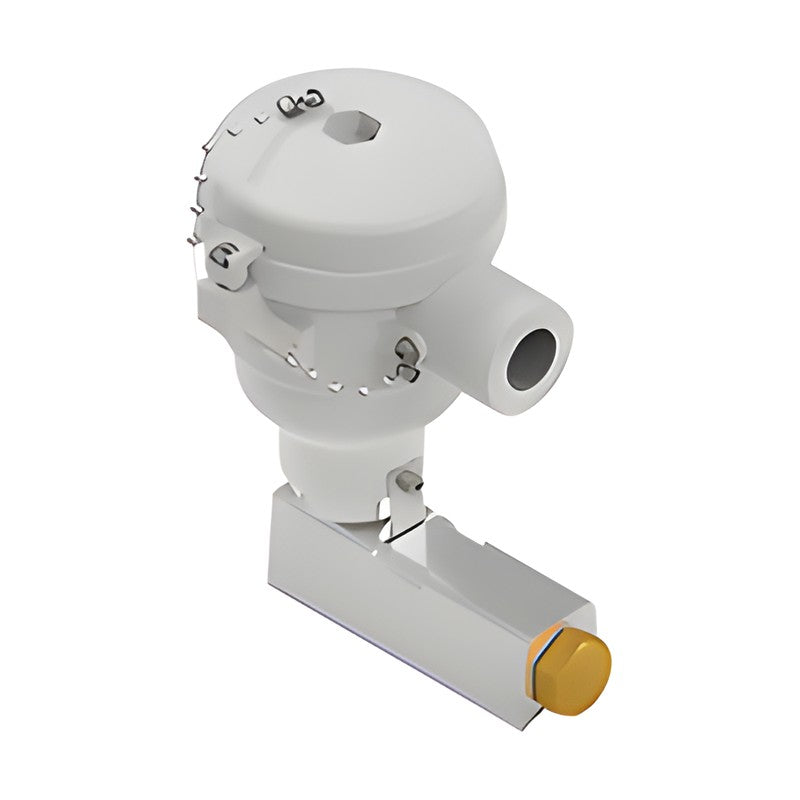

WISE LS30 Series Level Switch for Magnetic Level Gauge

WISE LS30 series level switches clamp onto a magnetic level gauge; the float magnet actuates an internal reed switch for alarm and control when filling or draining a tank.

Key features

SPDT reed switch actuated by gauge float magnet
LS31 weatherproof IP65
LS32 explosion-proof KCs, Ex db IIC T4, IP65
Aluminium head and body
Special bracket for set points within 20 mm of C to C

Specifications

Switch type	Reed switch, SPDT
Switching rating	230 VAC / 24 VDC, 0.5 A
Material	Aluminium head and body
Enclosure	LS31 IP65; LS32 KCs, Ex db IIC T4, IP65
Conduit	1/2" PF(F) std.; 1/2" NPT, 3/4" PF/NPT, M20x1.5 with adapter
Ordering options	Conduit connection, special bracket
Source	WISE data sheet LD03-01

LS31		Enclosure: Weatherproof IP65 \| Switch: SPDT reed
LS32		Enclosure: KCs Ex db IIC T4, IP65 \| Switch: SPDT reed

Level SwitchesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE LS30 Series Level Switch for Magnetic Level Gauge

Brand WISE·Level Switches

Available part numbers (2)

LS31, LS32

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
