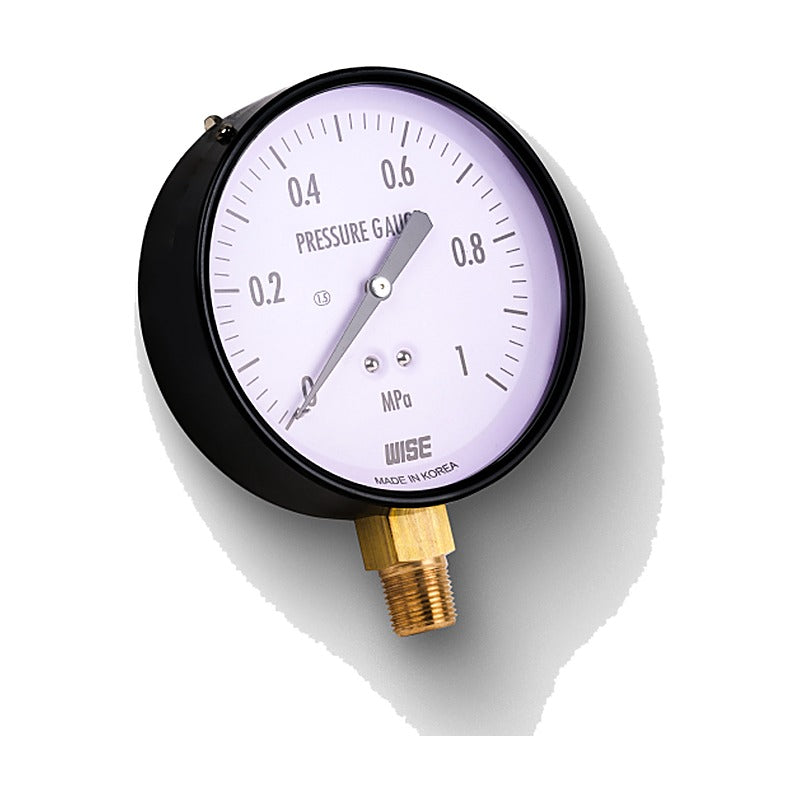

WISE P110 General Service Pressure Gauge

The WISE P110 is a low-cost general service pressure gauge built with quality parts for non-corrosive fluids. Air, oil, gas and water services are its most common applications.

Key features

Nominal sizes 40 to 200 mm
Accuracy ±1.5 % FS (±3.0 % FS for 40 mm)
Ranges from -0.1~0 up to 0~100 MPa (by size)
Brass connection with black steel case
Bottom, back and flush mounting types

Specifications

Nominal diameter	40, 50, 60, 75, 100, 150, 200 mm
Accuracy	40 mm: ±3.0 % FS; 50 to 200 mm: ±1.5 % FS
Scale range	-0.1~0 to 0~100 MPa depending on size
Pressure connection	Brass
Element	Brass; 316SS for higher ranges; C type or helical bourdon tube
Case / cover	Black finished steel (200 mm: black aluminium case)
Window	Glass
Process connection	⅛" to ½" PT, NPT, PF (by size)
Working temperature	Ambient -20 to 60 °C; fluid max. 60 °C
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories
Source	WISE data sheet PD0-01

P110

Size: 40-200 mm | Accuracy: ±1.5 % FS | Range: to 100 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P110 General Service Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P110

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
