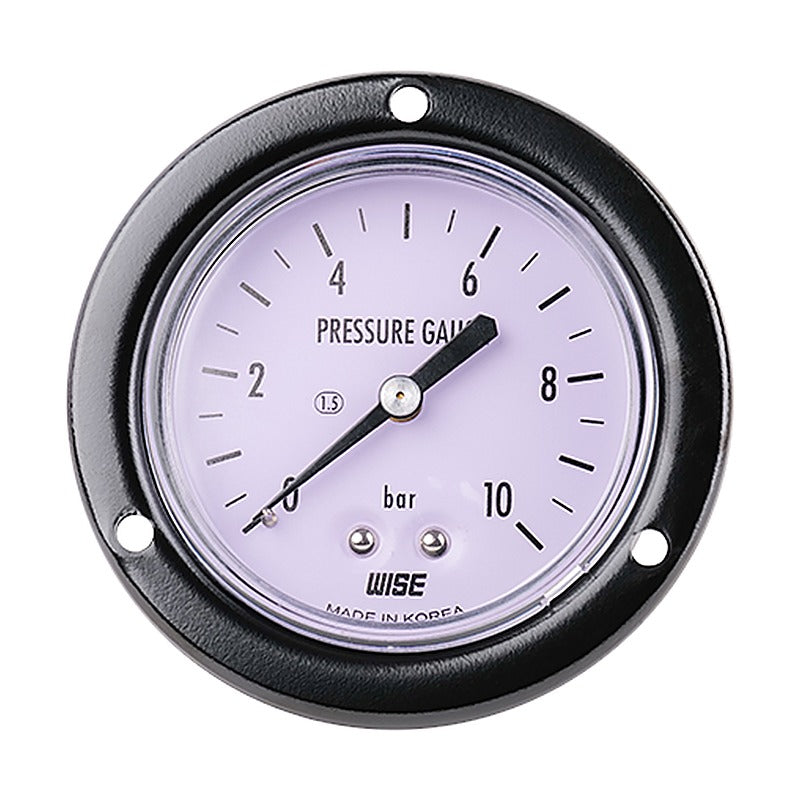

WISE P112 Polycarbonate Window Panel Mount Pressure Gauge

The WISE P112 is a 60 mm panel-mounting general service gauge with a polycarbonate window, designed to withstand the shock, vibration and pulsation of freon gas service.

Key features

60 mm panel mounting design
Polycarbonate window
⁷⁄₁₆" UNF connection for refrigerant service
Accuracy ±1.5 % FS
Ranges -0.1~0.2 to 0~3.5 MPa

Specifications

Nominal diameter	60 mm
Accuracy	±1.5 % FS
Scale range	-0.1~0.2, 0.4, 1.0, 1.5, 2.0 MPa; 0~2.5, 0~3.5 MPa
Pressure connection / element	Brass, C type bourdon tube
Case	Black finished steel
Window	Polycarbonate
Process connection	⁷⁄₁₆" UNF
Mounting	Bottom surface (case plate) or center back flush (case center plate)
Working temperature	Ambient -20 to 60 °C; fluid max. 60 °C
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories
Source	WISE data sheet PD0-03

P112

Size: 60 mm | Accuracy: ±1.5 % FS | Conn.: 7/16" UNF

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P112 Polycarbonate Window Panel Mount Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P112

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
