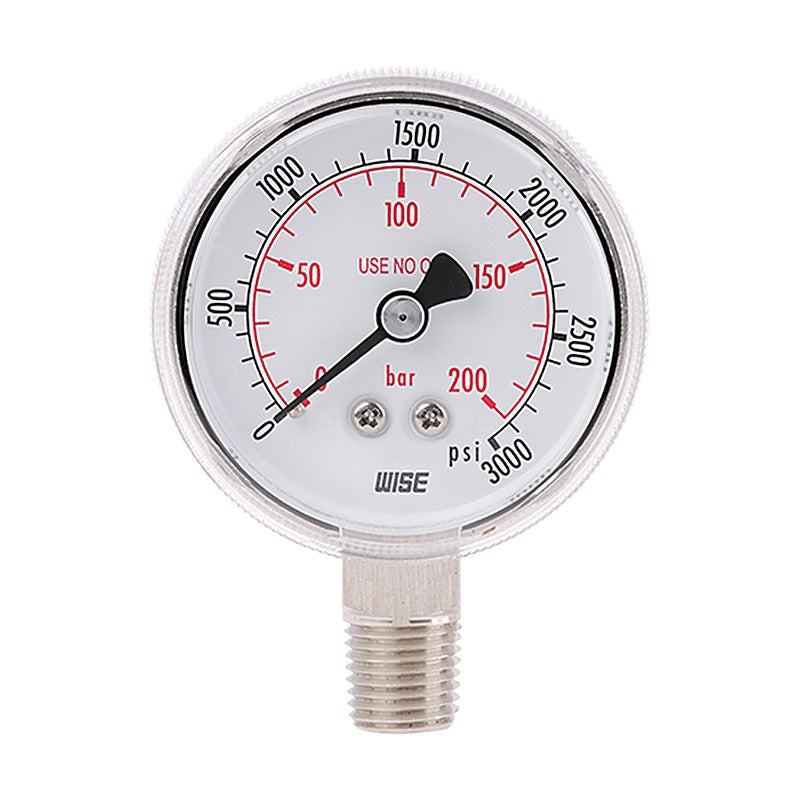

WISE P113 Air Regulator Fully Stainless Steel Pressure Gauge

The WISE P113 is a 50 mm fully stainless steel gauge designed for clean dry air (CDA) regulators in electronics, medical, biotechnology and pharmaceutical industries.

Key features

Designed for CDA regulator service
316SS connection and bourdon tube, 304SS case
Dual scale bar/psi or MPa/bar
Twist-lock polycarbonate ring and window
Ranges up to 0~40 MPa

Specifications

Nominal diameter	50 mm (2")
Accuracy	±1.6 % FS
Scale range	Up to 0~40 MPa
Pressure connection / element	316SS; C type (<6 MPa) or helical (≥6 MPa) bourdon tube
Case	304SS
Ring and window	Twist-lock polycarbonate
Dial	Dual scale bar/psi or MPa/bar, pointer stop pin
Process connection	¼" NPT, bottom
Working temperature	Ambient -40 to 65 °C; fluid max. 200 °C
Ordering options	Unit (bar/psi, MPa/bar), range, accessories
Source	WISE data sheet PD01-04

P113

Size: 50 mm | Accuracy: ±1.6 % FS | Conn.: ¼" NPT

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P113 Air Regulator Fully Stainless Steel Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P113

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
