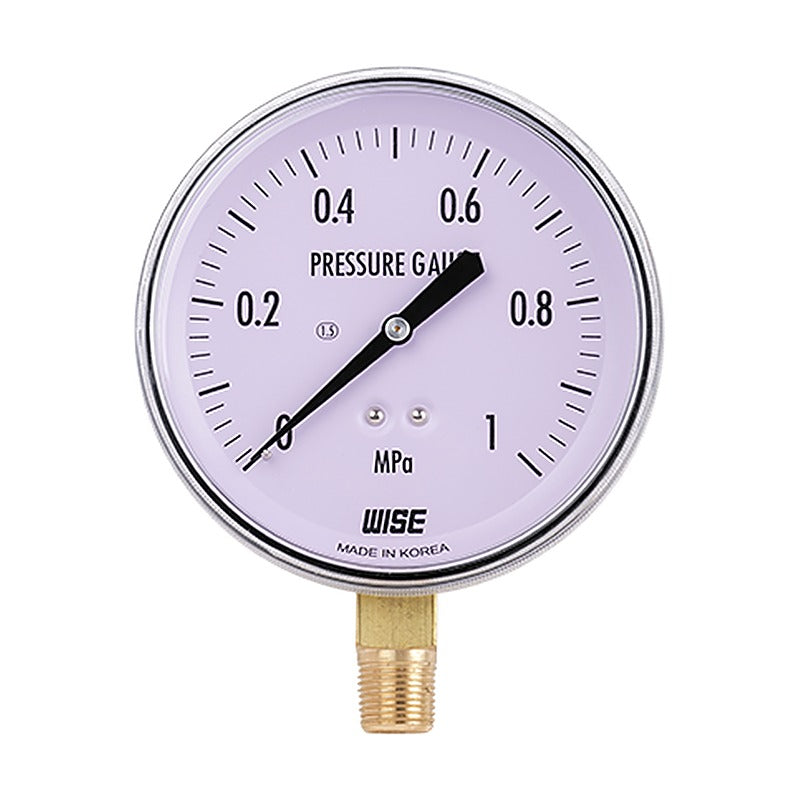

WISE P140 Polycarbonate Case General Service Pressure Gauge

The WISE P140 has a polycarbonate case and cover to withstand severe weather and rust in chemical and petrochemical environments with continuous atmospheric exposure.

Key features

Polycarbonate case and cover resist rust
For outdoor and chemical plant exposure
60 and 100 mm sizes
Accuracy ±1.5 % FS
Ranges up to 0~35 MPa (100 mm)

Specifications

Nominal diameter	60, 100 mm
Accuracy	±1.5 % FS
Scale range	60 mm: -0.1~0 to 0~25 MPa; 100 mm: -0.1~0 to 0~35 MPa
Pressure connection	Brass
Element	C type bourdon tube; brass ≤10 MPa, 316SS >10 MPa
Case / cover	Polycarbonate
Process connection	60 mm: ¼"; 100 mm: ⅜" PT, NPT, PF
Working temperature	Ambient -20 to 60 °C; fluid max. 60 °C
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories
Source	WISE data sheet PD01-05

P140

Size: 60/100 mm | Accuracy: ±1.5 % FS | Range: to 35 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P140 Polycarbonate Case General Service Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P140

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
