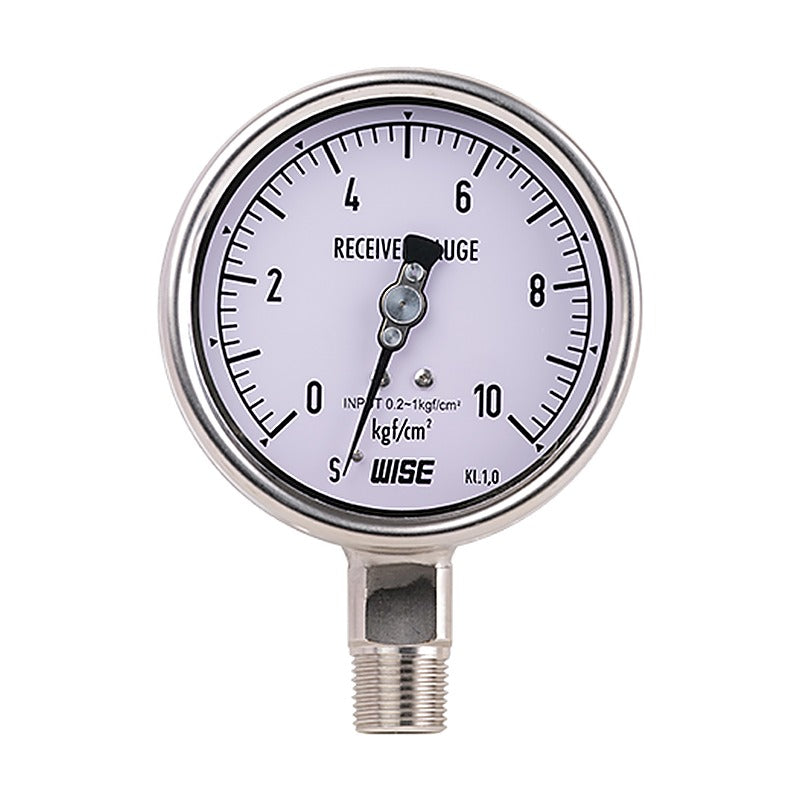

WISE P228 Receiver Gauge

The WISE P228 receiver gauge displays a pneumatic process signal (0.02-0.1 MPa, 0.2-1 kgf/cm² or 3-15 psi) on a linear or square root scale for remote or local indication.

Key features

Pneumatic input 0.02-0.1 MPa, 0.2-1 kgf/cm² or 3-15 psi
0~100 % linear or 0~10 square root scale
316SS wetted parts, 304SS case
Accuracy ±1.0 % FS, IP67
100 and 160 mm sizes

Specifications

Nominal diameter	100, 160 mm
Accuracy	±1.0 % FS
Process input	0.02-0.1 MPa, 0.2-1 kgf/cm², 3-15 psi
Scale	0~100 % linear; 0~10 square root
Pressure connection / element	316SS, C type bourdon tube
Case / cover	304SS
Window	Safety glass
Degree of protection	IP67
Process connection	¼", ⅜", ½" PT, NPT, PF; ¼" PT(F), NPT(F)
Working temperature	Ambient -40 to 65 °C; fluid max. 200 °C
Ordering options	Mounting type, connection size/type, process input, scale, dial color, accessories
Source	WISE data sheet PD02-03

P228

Size: 100/160 mm | Input: 3-15 psi etc. | Accuracy: ±1.0 % FS
