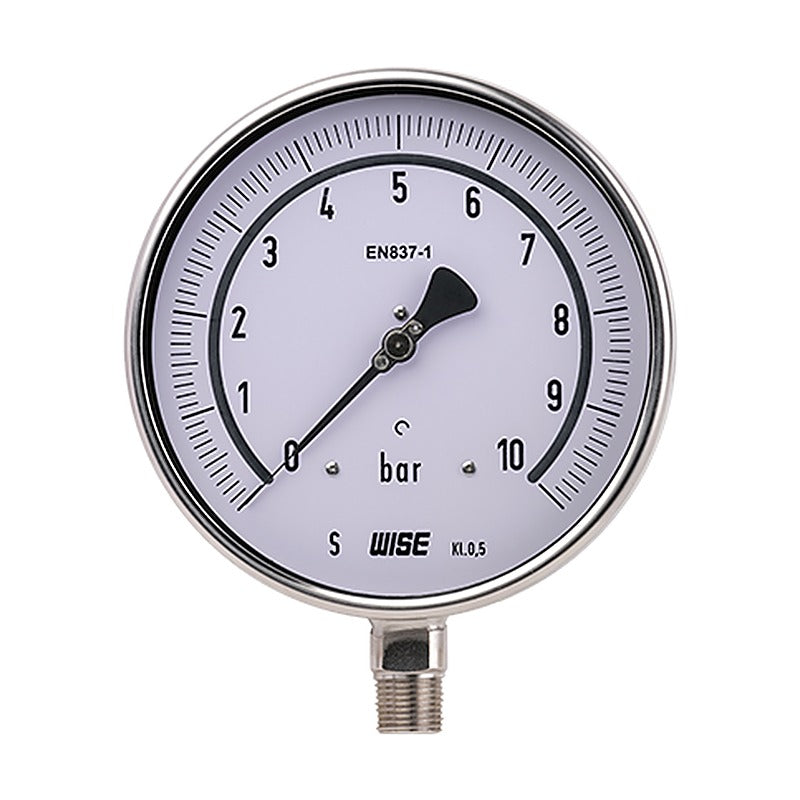

WISE P229 0.5 Class Test Pressure Gauge

The WISE P229 160 mm test gauge is designed for instrument shops, laboratories and other critical applications that require ±0.5 % FS accuracy.

Key features

Accuracy ±0.5 % FS
Ranges up to 0~200 MPa
Micro zero adjustable pointer
IP67 stainless steel case
ATEX Ex h certified

Specifications

Nominal diameter	160 mm
Accuracy	±0.5 % FS
Scale range	-0.1~0 to 0~200 MPa
Pressure connection / element	316SS (Monel option); C type (<10 MPa) or helical
Case / cover	304SS
Window	Laminated safety glass
Degree of protection	IP67
Process connection	¼", ⅜", ½" PT, NPT, PF
Certificates	ATEX II 2G Ex h IIC T6...T1 Gb; ATEX II 2D Ex h IIIC T85°C...T450°C Db
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories, glycerin/silicone filling
Source	WISE data sheet PD02-04

P229

Size: 160 mm | Accuracy: ±0.5 % FS | Range: to 200 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P229 0.5 Class Test Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P229

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
