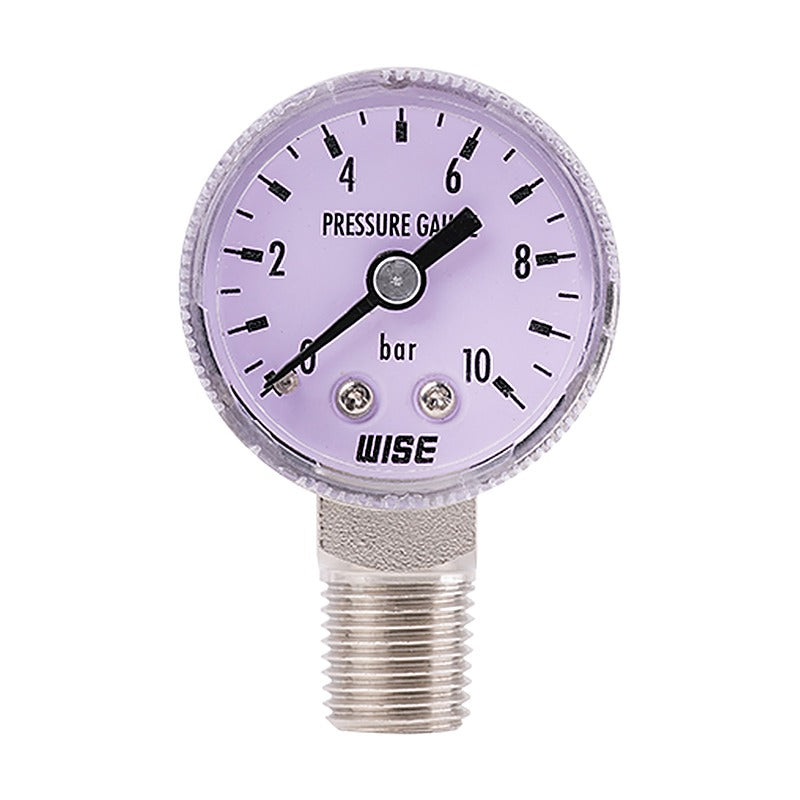

WISE P235S/P235B 35 mm Miniature Pressure Gauge

The WISE P235S and P235B 35 mm miniature gauges fit narrow, tight spaces where regular gauges cannot be installed, such as positioners and small machines, and perform well under severe vibration.

Key features

35 mm miniature size for tight spaces
P235S: 316SS internal; P235B: brass internal
304SS case
Ranges 0~0.2 to 0~3.5 MPa
Optional safety glass with stainless cover

Specifications

Nominal diameter	35 mm
Accuracy	±3.0 % FS
Scale range	0~0.2 to 0~3.5 MPa
Pressure connection / element	P235S: 316SS; P235B: brass; C type bourdon tube
Case	304SS
Process connection	⅛", ¼" PT, NPT, PF; bottom or center back
Working temperature	P235S: ambient -40 to 65 °C, fluid max. 200 °C; P235B: -20 to 60 °C, max. 60 °C
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories
Source	WISE data sheet PD02-05

P235S		Size: 35 mm \| Internal: 316SS \| Accuracy: ±3.0 % FS
P235B		Size: 35 mm \| Internal: Brass \| Accuracy: ±3.0 % FS

Pressure GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P235S/P235B 35 mm Miniature Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (2)

P235S, P235B
