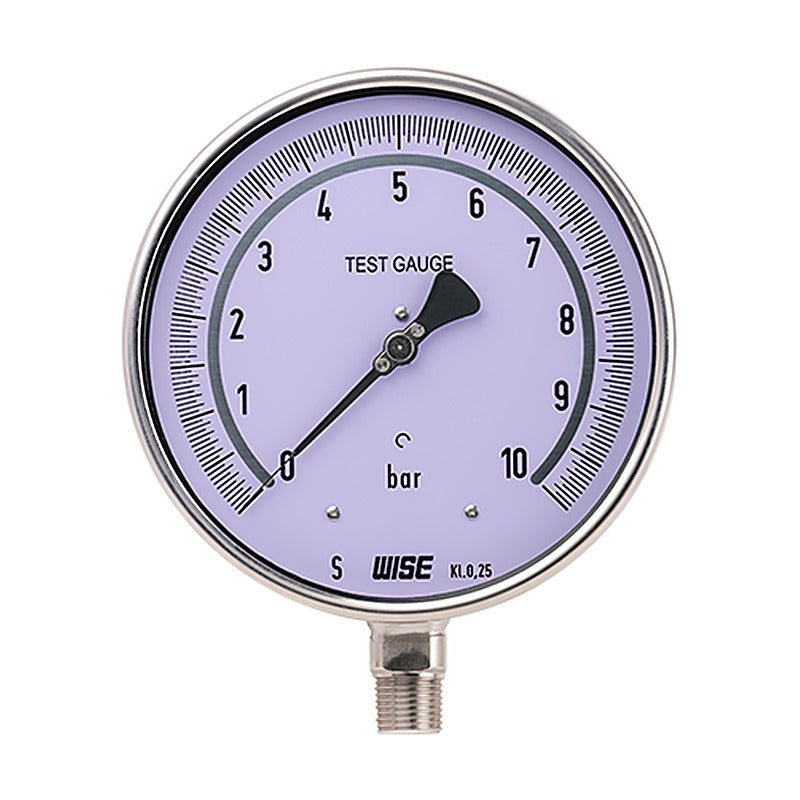

WISE P239 0.25 Class Test Pressure Gauge

The WISE P239 test gauges check the accuracy of pressure instruments in labs, research shops and test facilities where ±0.25 % FS accuracy is required.

Key features

Accuracy ±0.25 % FS
270° mirror band scale
160 and 250 mm sizes
Ranges 0~60 kPa to 0~100 MPa
External zero adjustment on 250 mm

Specifications

Nominal diameter	160, 250 mm
Accuracy	±0.25 % FS
Scale range	0~60 kPa to 0~100 MPa
Pressure connection / element	316SS; C type (<100 bar) or helical (≥100 bar)
Case	160 mm: 304SS bayonet; 250 mm: black aluminium solid front
Window	Safety glass
Dial	270° mirror band scale
Zero adjustment	Internal (160 mm), external (250 mm)
Process connection	⅜", ½" PT, NPT, PF
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories, orifice
Source	WISE data sheet PD02-06

P239

Size: 160/250 mm | Accuracy: ±0.25 % FS | Range: to 100 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P239 0.25 Class Test Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P239

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
