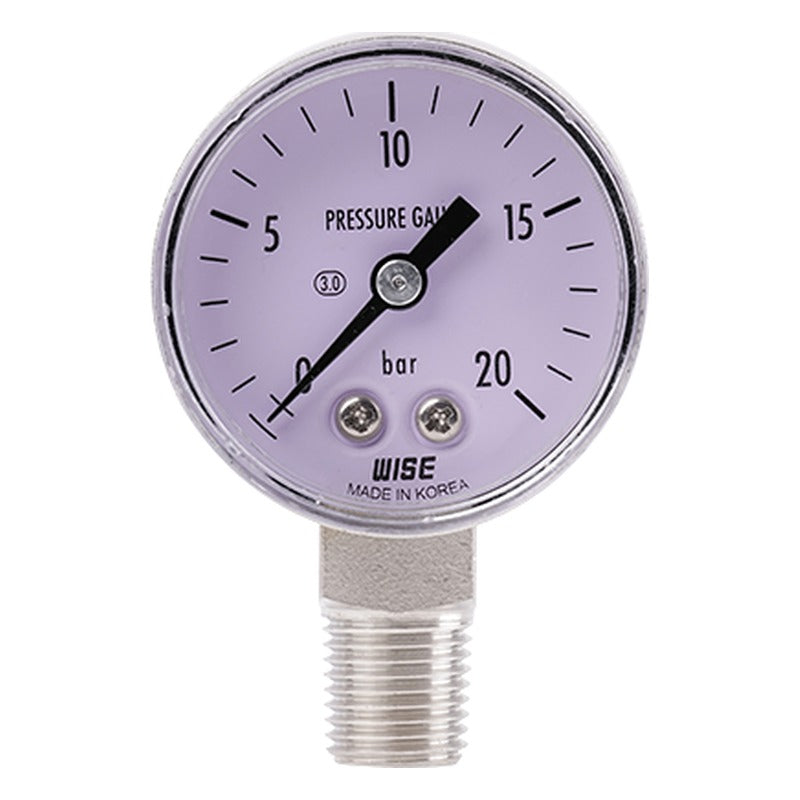

WISE P253 40/50 mm Industrial Pressure Gauge

The WISE P253 40/50 mm industrial gauge combines a 304SS case with nickel-plated brass internals for chemical, petrochemical, refining, power, marine and food industry service.

Key features

Compact 40 and 50 mm sizes
304SS case for corrosive environments
Nickel-plated brass connection, brass bourdon tube
Ranges 0~0.2 to 0~3.5 MPa
Optional safety glass with 304SS cover

Specifications

Nominal diameter	40, 50 mm
Accuracy	40 mm: ±3.0 % FS; 50 mm: ±1.5 % FS
Scale range	0~0.2, 0.3, 0.4, 0.6, 1, 1.5, 2, 3.5 MPa
Pressure connection	Nickel plated brass
Element	Brass C type bourdon tube
Case / cover	304SS (40 mm cover: 304SS and polycarbonate)
Window	Polycarbonate
Process connection	⅛", ¼" PT, NPT, PF; bottom or center back
Working temperature	Ambient -20 to 60 °C; fluid max. 60 °C
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories
Source	WISE data sheet PD02-01

P253

Size: 40/50 mm | Accuracy: ±1.5 % FS (50 mm) | Range: to 3.5 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P253 40/50 mm Industrial Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P253

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
