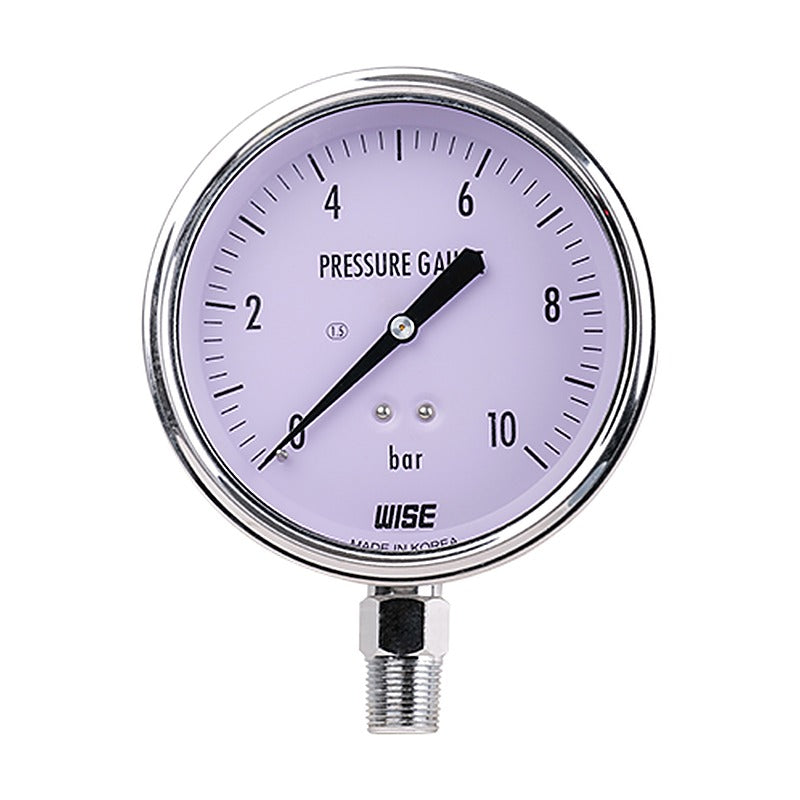

WISE P254 Liquid-Filled General Service Pressure Gauge

The WISE P254 liquid-filled gauge measures high dynamic pressure loads where severe vibration is present, for hydraulics, compressors and shipbuilding.

Key features

Glycerin filled (silicone option)
Crimp ring 304SS case, IP67
Sizes 50 to 100 mm
Ranges -0.1~0 to 0~40 MPa
Accuracy ±1.5 % FS

Specifications

Nominal diameter	50, 63, 75, 100 mm
Accuracy	±1.5 % FS
Scale range	-0.1~0 to 0~40 MPa
Pressure connection	Brass (50/63 mm); nickel plated brass (75/100 mm)
Element	Brass; C type (<6 MPa) or helical (≥6 MPa)
Case / cover	304SS, crimp ring
Window	Polycarbonate (50/63 mm); safety glass (75/100 mm)
Fill	Glycerin; silicone option
Degree of protection	IP67
Process connection	⅛" to ½" PT, NPT, PF, BSPT, BSP; ⁷⁄₁₆" UNF
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories, fill fluid
Source	WISE data sheet PD02-09

P254

Size: 50-100 mm | Accuracy: ±1.5 % FS | Fill: Glycerin
