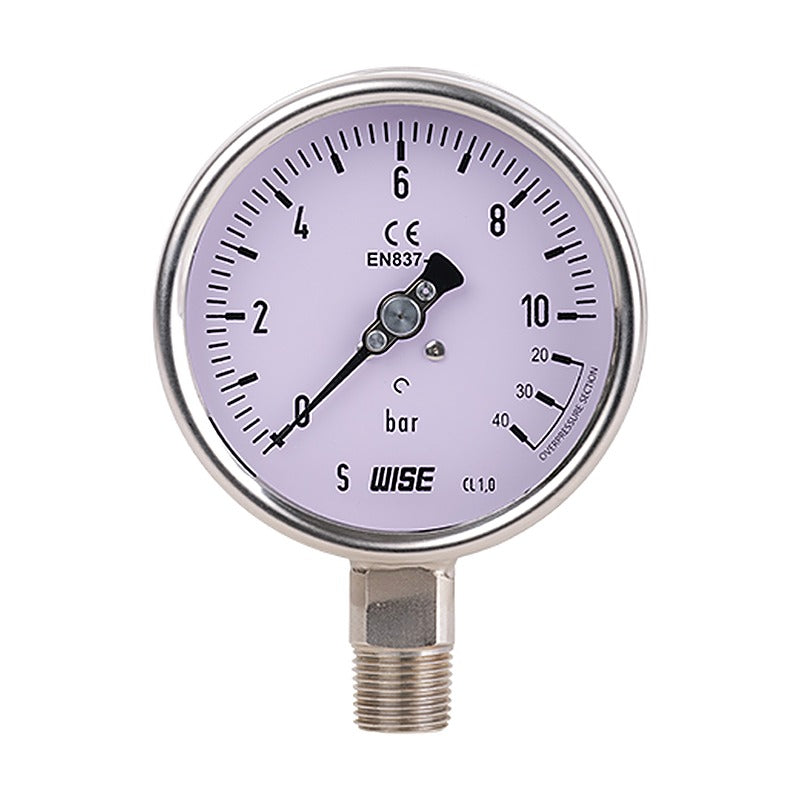

WISE P256 Overpressure Protection Safety Pattern Gauge

The WISE P256 safety pattern gauge has a solid front wall and blow-out back, and protects the measuring element against overpressure up to 4 times the measuring range.

Key features

Overpressure protection to 4x measuring range
Solid front with blow-out back
Accuracy ±1.0 % of measuring range
316SS wetted parts, 304SS bayonet case, IP67
Optional Monel element or 316SS case

Specifications

Nominal diameter	100, 160 mm
Accuracy	±1.0 % of measuring range
Scale range	-0.1~0 to 0~4 MPa
Over range protection	4 times the measuring range
Pressure connection / element	316SS (Monel option)
Case / cover	304SS bayonet (316SS option)
Window	Laminated safety glass
Degree of protection	IP67
Process connection	⅜", ½" PT, NPT, PF, BSPT, BSP (G)
Note	Not applied with diaphragm seal
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories, fill fluid
Source	WISE data sheet PD02-11

P256

Size: 100/160 mm | Overpressure: 4x range | Range: to 4 MPa
