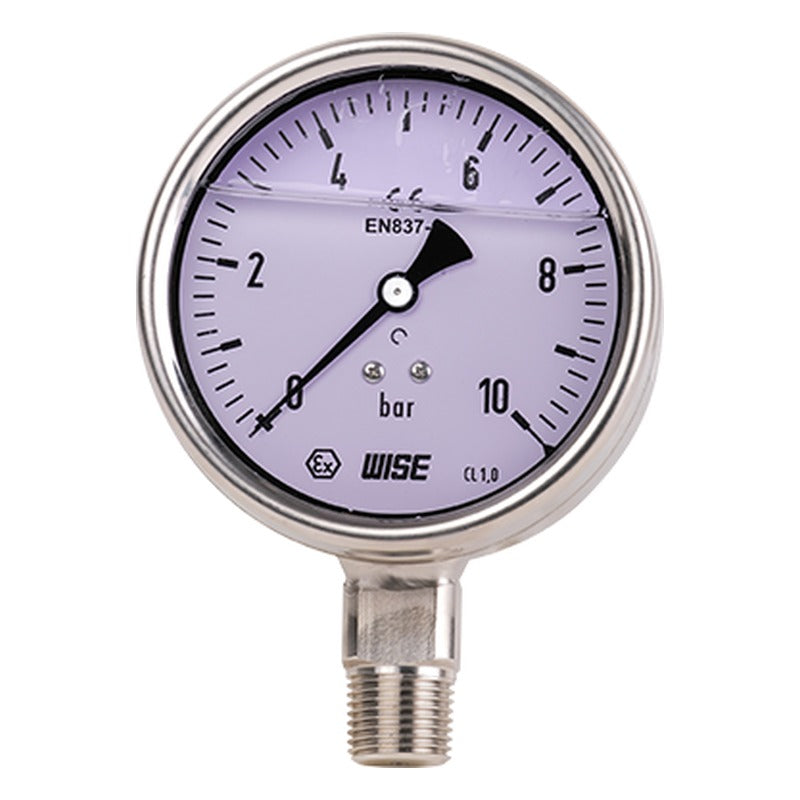

WISE P258 Liquid-Filled Industrial Pressure Gauge

WISE P258 Liquid-Filled Industrial Pressure Gauge

The WISE P258 liquid-filled stainless steel gauge is suited to corrosive environments in chemical, petrochemical, refining, power, marine and food industries. The fill liquid absorbs vibration and pulsation.

Key features

  • Glycerin filled (silicone option)
  • 316SS wetted parts, 304SS bayonet case
  • Accuracy to ±0.5 % FS (100/160 mm)
  • Ranges up to 0~200 MPa
  • ATEX Ex h certified

Specifications

Nominal size 63, 80, 100, 160 mm
Accuracy P2582, P2583: ±1.6 % FS; P2584, P2586: ±0.5 % or ±1.0 % FS
Scale range 63/80 mm: to 0~100 MPa; 100/160 mm: to 0~200 MPa
Pressure connection / element 316SS (Monel option, 100/160 mm)
Case / cover 304SS, bayonet type
Window Safety glass
Degree of protection IP67 / IP66
Process connection ⅛" to ½" PT, NPT, PF, BSPT, BSP (G)
Certificates ATEX II 2G Ex h IIC T6...T1 Gb; ATEX II 2D Ex h IIIC T85°C...T450°C Db
Ordering options Mounting type, connection size/type, unit, range, dial color, accessories, silicone filling
Source WISE data sheet PD02-13
P2582 Nominal size: 63 mm | Accuracy: ±1.6 % FS | Range: to 100 MPa
P2583 Nominal size: 80 mm | Accuracy: ±1.6 % FS | Range: to 100 MPa
P2584 Nominal size: 100 mm | Accuracy: ±0.5/1.0 % FS | Range: to 200 MPa
P2586 Nominal size: 160 mm | Accuracy: ±0.5/1.0 % FS | Range: to 200 MPa
Pressure GaugesWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P258 Liquid-Filled Industrial Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (4)

P2582, P2583, P2584, P2586

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2582Nominal size: 63 mm | Accuracy: ±1.6 % FS | Range: to 100 MPa
P2583Nominal size: 80 mm | Accuracy: ±1.6 % FS | Range: to 100 MPa
P2584Nominal size: 100 mm | Accuracy: ±0.5/1.0 % FS | Range: to 200 MPa
P2586Nominal size: 160 mm | Accuracy: ±0.5/1.0 % FS | Range: to 200 MPa
