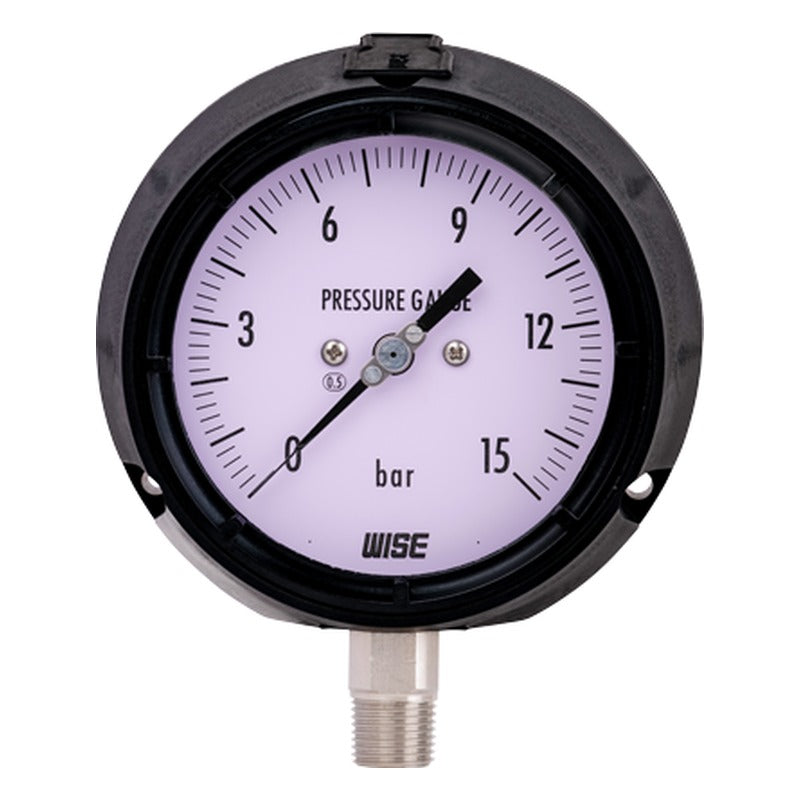

WISE P359 Solid Front Thermoplastic Safety Pattern Gauge

The WISE P359 safety pattern gauge has a 4½" glass-reinforced thermoplastic turret case with solid front and blow-out back for corrosive, hot environments and safety requirements.

Key features

Solid front, blow-out back safety design
Glass-reinforced thermoplastic (PBTB) turret case
Accuracy ±0.5 % or ±1.0 % FS
Ranges up to 0~200 MPa
PED Module H and ATEX certified

Specifications

Nominal diameter	125 mm (4½")
Accuracy	±0.5 % or ±1.0 % FS
Scale range	-0.1~0 to 0~200 MPa
Pressure connection / element	316SS (Monel option); C type or helical
Case	Black glass reinforced thermoplastic (PBTB), rear flange lugs
Window	Polycarbonate (safety glass option)
Degree of protection	IP67 (mounting type B)
Process connection	⅜", ½" PT, NPT, PF
Certificates	PED 2014/68/EU Annex III Module H; ATEX Ex II GD c IIB TX
Ordering options	Mounting type, connection size/type, unit, range, dial color, accessories, fill fluid
Source	WISE data sheet PD03-03

P359

Size: 125 mm | Accuracy: ±0.5/1.0 % FS | Range: to 200 MPa

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P359 Solid Front Thermoplastic Safety Pattern Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P359

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
