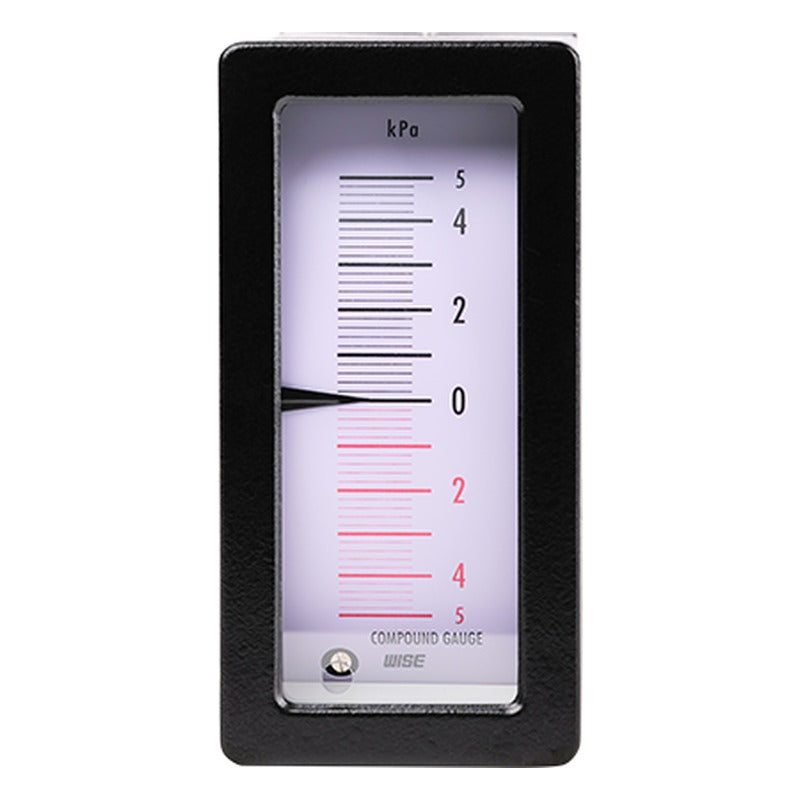

WISE P410/P420 Draft Gauge

The WISE P410 and P420 square draft gauges measure low, vacuum or compound pressure and are designed for panel mounting.

Key features

Vacuum, compound and low pressure ranges in kPa
Horizontal (P) or vertical (R) panel mounting
P410 steel case; P420 stainless steel case
316L SS element, safety glass
Accuracy ±2.0 % or ±3.0 % FS

Specifications

Size	192 (W) x 96 (H) mm or 96 (W) x 192 (H) mm
Scale range	Vacuum -1~0 to -0.5~0 kPa; compound to -5~5 kPa; pressure 0~0.5 to 0~10 kPa
Accuracy	±2.0 % FS; ±3.0 % FS (compound and vacuum)
Pressure connection / element	316SS / 316L SS
Case	P410: black finished steel; P420: black finished 304SS
Window	Safety glass
Process connection	⅜", ½" PT, NPT, PF
Working temperature	Ambient -20 to 65 °C; fluid max. 100 °C
Ordering options	Mounting (horizontal/vertical), connection, unit (kPa/mbar), range, dial color
Source	WISE data sheet PD04-01

P410		Case: Black steel \| Size: 192 x 96 mm \| Unit: kPa/mbar
P420		Case: 304SS \| Size: 192 x 96 mm \| Unit: kPa/mbar

Pressure GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P410/P420 Draft Gauge

Brand WISE·Pressure Gauges

Available part numbers (2)

P410, P420

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
