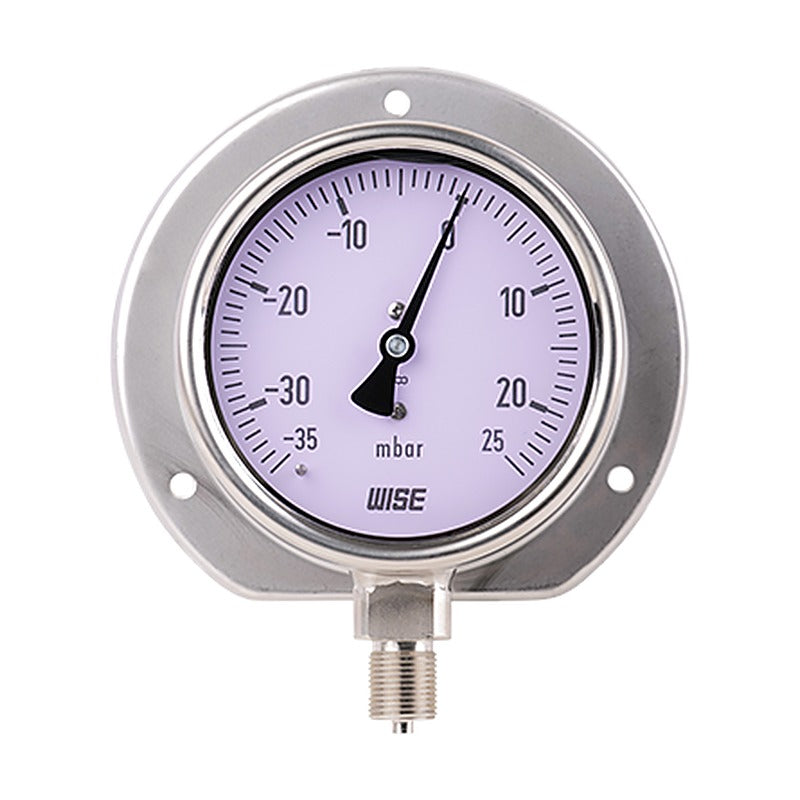

WISE P422 Capsule Stainless Steel Low Pressure Gauge

The WISE P422 fully stainless steel gauge measures low, vacuum or compound pressure with a 316L SS capsule element made of two welded diaphragms.

Key features

316L SS capsule element up to 35 kPa
Fully stainless steel case and cover
Sizes 63 to 160 mm
Accuracy ±1.0 % or ±1.6 % FS
ATEX Ex h certified

Specifications

Nominal diameter	63, 80, 100, 160 mm
Accuracy	±1.0 % FS (100/160 mm) or ±1.6 % FS
Scale range	-35~0 to -2~0 kPa; -15~15 to -0.5~0.5 kPa; 0~1 to 0~2 kPa
Element	316L SS capsule
Pressure connection	316SS (Monel option)
Case / cover	304SS
Degree of protection	IP65 (100 mm)
Process connection	⅛" to ½" PT, NPT, PF
Certificates	ATEX II 2G Ex h IIC T6...T1 Gb; ATEX II 2D Ex h IIIC T85°C...T450°C Db
Ordering options	Mounting, connection, unit (kPa/mbar), range, material/dial color, silicone filling
Source	WISE data sheet PD04-03

P422

Size: 63-160 mm | Range: kPa/mbar | Element: 316L SS capsule

Pressure GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P422 Capsule Stainless Steel Low Pressure Gauge

Brand WISE·Pressure Gauges

Available part numbers (1)

P422

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
