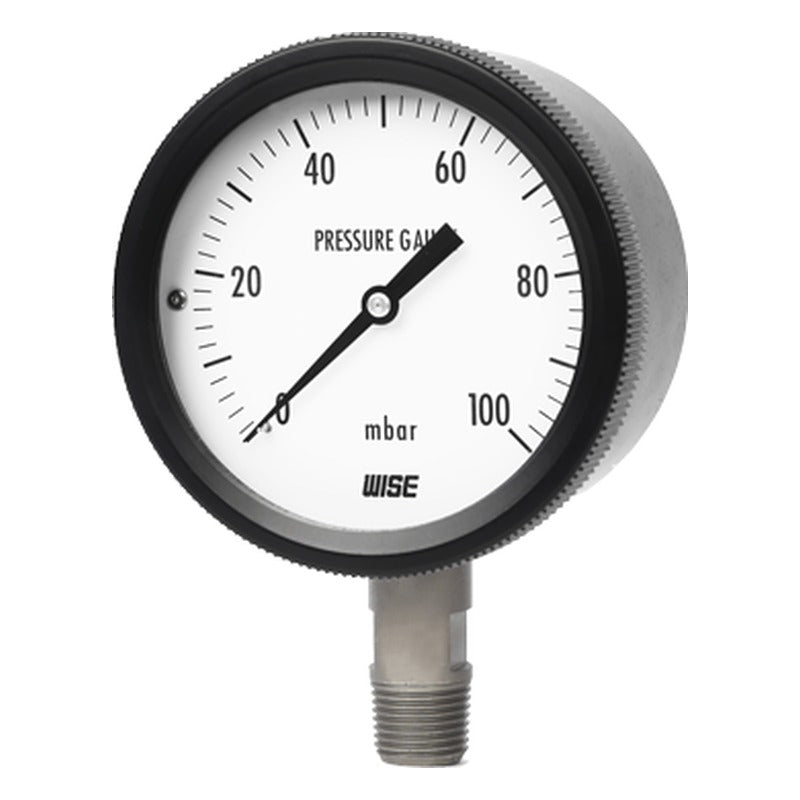

WISE P430 Aluminium Case Low Pressure Gauge

The WISE P430 measures low, vacuum or compound pressure using a 316L SS element of two welded diaphragms, housed in a black aluminium case.

Key features

316L SS diaphragm capsule element
Black finished aluminium case and cover
Ranges -35~0 to 0~35 kPa
Accuracy ±1.0 % or ±1.5 % FS
100 and 150 mm sizes

Specifications

Nominal diameter	100, 150 mm
Accuracy	±1.0 % or ±1.5 % FS
Scale range	-35~0 to -1~0 kPa; -15~15 to -0.5~0.5 kPa; 0~1 to 0~35 kPa
Element	316L SS
Pressure connection	316SS
Case / cover	Black finished aluminium
Window	Safety glass
Process connection	⅜", ½" PT, NPT, PF
Ordering options	Mounting, connection, unit (kPa/mbar), range, accessories, orifice
Source	WISE data sheet PD04-05

P430

Size: 100/150 mm | Range: to 35 kPa | Accuracy: ±1.0/1.5 % FS
