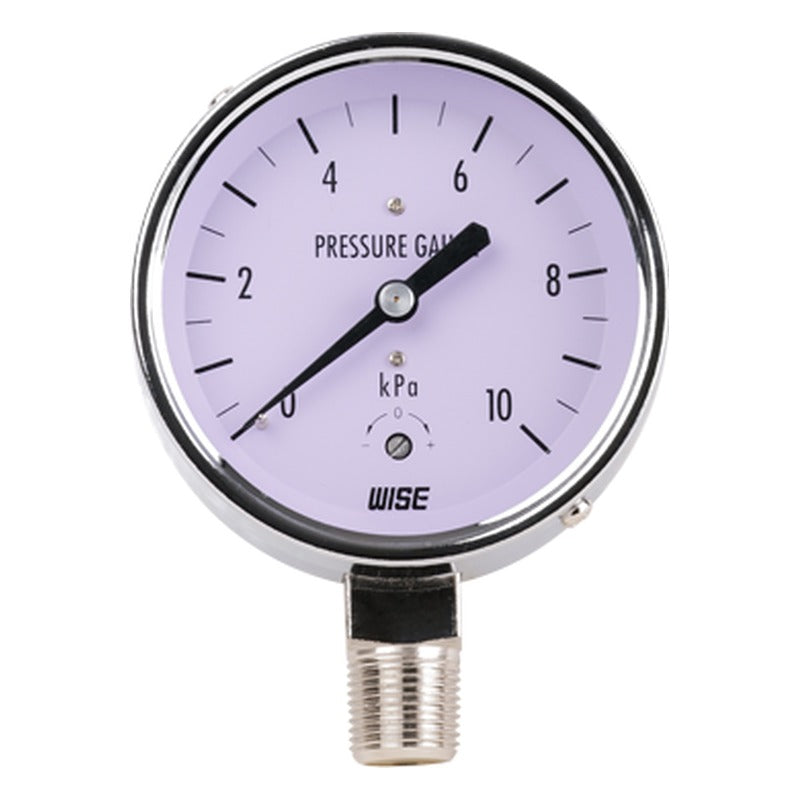

WISE P440 Brass Internal Capsule Low Pressure Gauge

The WISE P440 measures low, vacuum or compound pressure with a beryllium copper capsule element and a nickel-plated steel case.

Key features

Beryllium copper capsule element
Nickel plated steel case and cover
Sizes 63, 75 and 100 mm
Ranges -50~0 to 0~50 kPa
63 mm stainless steel version available

Specifications

Nominal diameter	63, 75, 100 mm
Accuracy	±1.5 % FS
Scale range	-50~0 to -5~0 kPa; -15~15 to -2.5~2.5 kPa; 0~5 to 0~50 kPa
Element	Beryllium copper
Pressure connection	Nickel plated brass; 316SS (63 mm F/J type)
Case / cover	Nickel plated steel; 304SS (63 mm F/J type)
Window	Glass, polycarbonate
Process connection	63 mm: ⅛", ¼"; 75 mm: ¼", ⅜"; 100 mm: ⅜", ½" PT, NPT, PF
Working temperature	Ambient -20 to 60 °C; fluid max. 60 °C
Ordering options	Size/case, mounting, connection, unit (kPa/mbar), range, material/dial color
Source	WISE data sheet PD04-06

P440

Size: 63/75/100 mm | Range: to 50 kPa | Accuracy: ±1.5 % FS
