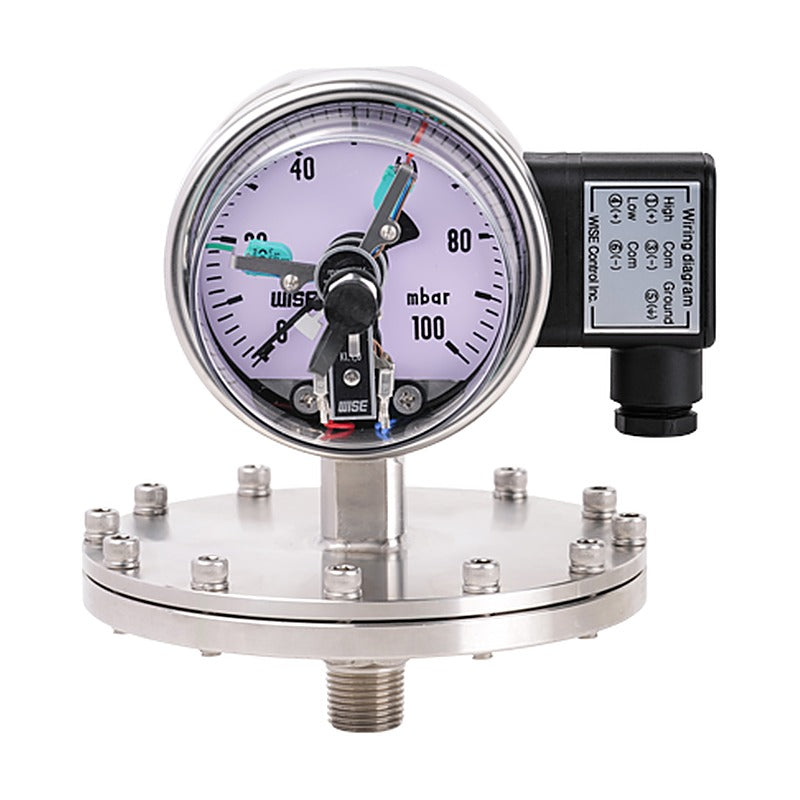

WISE P501, P502 Inductive Contact Diaphragm Seal Pressure Gauge

Diaphragm seal pressure gauge with an inductive contact block for alarm and control of low pressures and corrosive or viscous media. P501 has a screwed process connection, P502 an "I" type flange connection.

Key features

Inductive slot-sensor contacts with external setpoint adjustment
Low ranges from 0~1 kPa (150 mm flange) up to 0~2.5 MPa (100 mm flange)
Diaphragm 316L SS (≤40 kPa) or Duratherm 600 (>40 kPa)
Certified KCs Ex ia IIC T6 and NEPSI Ex ia IIC T6 Ga
IP67 304SS bayonet case, 100 or 160 mm

Specifications

Nominal size	100 and 160 mm
Range	0~1 kPa to 0~2.5 MPa
Accuracy	±1.0 % of full scale
Diaphragm	316L SS (≤40 kPa), Duratherm 600 (>40 kPa)
Under flange (wetted)	304SS, 316SS or 316L SS
Case	304SS, bayonet type
Window	Safety glass (100 mm) or polycarbonate
Conduit connection	M20 x 1.5
Temperature	Ambient -20~65 °C; fluid max. 100 °C
Protection / certificates	IP67; KCs Ex ia IIC T6; NEPSI Ex ia IIC T6 Ga
Ordering options	Size/window, contact function, connection, flange material, unit, range, amplifier
Source	WISE data sheet PD05-02

P501		Connection: Screwed \| Size: 100 / 160 mm \| Contact: Inductive
P502		Connection: "I" type flange \| Size: 100 / 160 mm \| Contact: Inductive

Electrical Contact GaugesWISE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P501, P502 Inductive Contact Diaphragm Seal Pressure Gauge

Brand WISE·Electrical Contact Gauges

Available part numbers (2)

P501, P502

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
