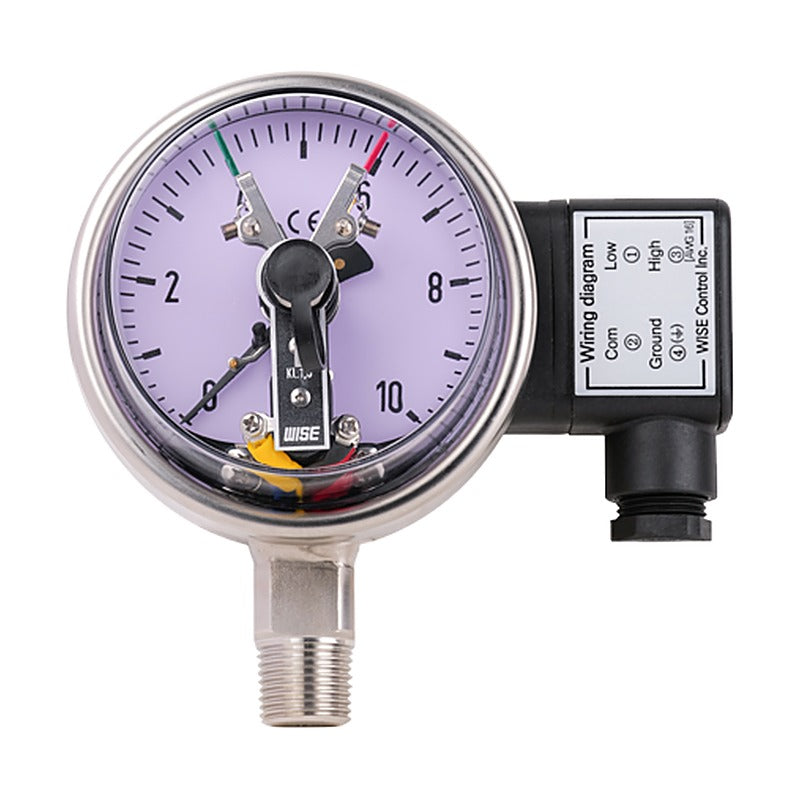

WISE P510 Electrical Contact Modular System Pressure Gauge

Stainless steel electrical contact pressure gauge with a dial-mounted magnetic snap-action contact block for local indication plus alarm or control switching. Setpoints are adjusted externally through a knob on the window.

Key features

Magnetic snap-action contacts, resistant to shock and vibration
Six contact functions incl. two-high, two-low and failsafe
316SS Bourdon tube (C-type <10 MPa, helical ≥10 MPa)
IP67 304SS bayonet case, 100 or 160 mm
PED 2014/68/EU Annex III Module H

Specifications

Nominal size	100 and 160 mm
Range	-0.1~0 MPa to 0~200 MPa
Accuracy	±1.0 % of full scale
Contacts	Magnetic snap-action, max. 30 W / 50 VA
Element / connection	316SS (316L SS option)
Case / bezel	304SS, bayonet type; polycarbonate window
Process connection	3/8", 1/2" PT, NPT, PF
Conduit connection	M20 x 1.5
Temperature	Ambient -40~65 °C; fluid max. 100 °C
Protection / certificates	IP67; PED 2014/68/EU Module H
Ordering options	Mounting, contact function, unit, range, dial colours, damping movement
Source	WISE data sheet PD05-03

P510

Nominal size: 100 / 160 mm | Range: -0.1~0 to 0~200 MPa | Contact: Snap action

Electrical Contact GaugesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P510 Electrical Contact Modular System Pressure Gauge

Brand WISE·Electrical Contact Gauges

Available part numbers (1)

P510

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
